Lubricate Suspension Assemblies-Daily

Lubricate front and rear suspension assemblies with John Deere HD Moly Grease or John Deere SD Polyurea Grease. Use three pumps of grease at each fitting (A).

IMPORTANT: Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.

NOTE: Three grease fittings are on each front suspension. Two grease fittings are on each rear suspension.

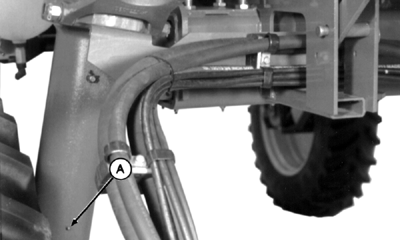

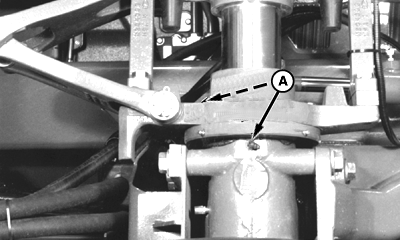

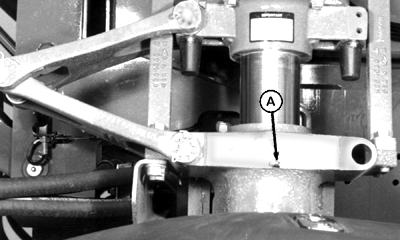

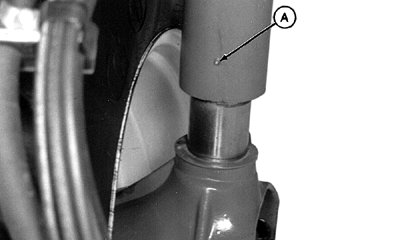

A-Grease Fitting

OUO6092,0000723 -19-14OCT04-1/1
