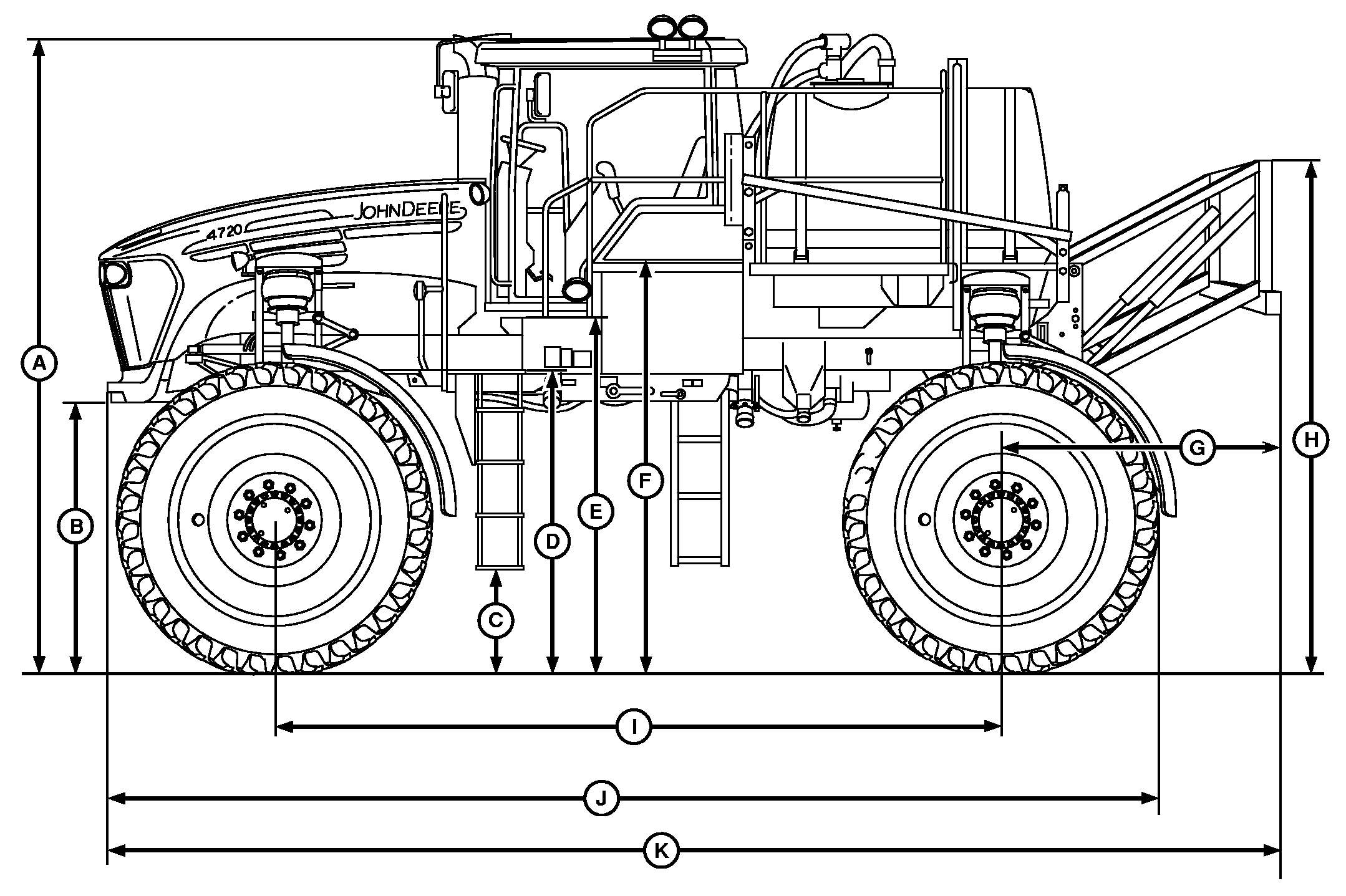

A-Cab Height-Springs Inflated, 3963 mm (156.0 in.)
A-Cab Height-Springs Deflated, 3861 mm (152.0 in.)
B-Under Frame Clearance, 1562 mm (61.5 in.)
C-Bottom of Ladder, 595 mm (23.4 in.)
|
D-First Platform Step, 1749 mm (68.8 in.)
E-Second Platform Step, 2082 mm (82.0 in.)
F-Top Platform, 2395 mm (94.3 in.)
G-Tire Center-to-Rearmost Boom Point, 1676 mm (66.0 in.)
H-Highest Point on Boom in Transport-60 ft. Boom, 3467 mm (136.5 in.)
|
H-Highest Point on Boom In Lowest Cradle Position-80/90 ft. Boom, 3832 mm (150.9 in.)
H-Highest Point on Boom In Highest Cradle Position-80/90 ft. Boom, 4115 mm (162.0 in.)
I-Wheelbase, 4211 mm (165.8 in.)
|
J-Front of Machine-to-Rear of Rear Tire, 6073 mm (239.1 in.)
K-Front of Machine-to-Rearmost Boom Point, 7554 mm, (297.4 in.)
|
