Using A Booster Battery

causym CAUTION: Gas given off by batteries is explosive and can cause serious injury or death to you or others. Keep sparks and flames away from batteries. Make last connection and first disconnection at a point away from booster battery.

IMPORTANT: If a booster battery is used, two or more batteries cannot be used in series. they must be parallel. Be sure polarity is correct before making connections. Reversed polarity will damage electrical system or possibly cause an explosion of a battery.

1. Remove covers from remote terminals.

2. Attach positive booster cable (red) to the positive (+) remote terminal (A) and opposite end of booster cable to positive (+) terminal of booster battery.

3. Attach negative booster cable (black) to the negative (-) remote terminal (B) and opposite end of booster cable to negative (-) terminal of booster battery.

4. Once machine has started, disconnect booster cables in reverse order of connection.

5. Place covers on remote terminals.

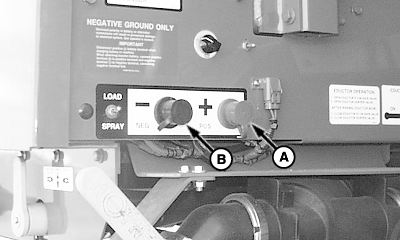

N67926


A-Positive Remote Terminal
B-Negative Remote Terminal

OUO6092,000081D -19-23JUN05-1/1
