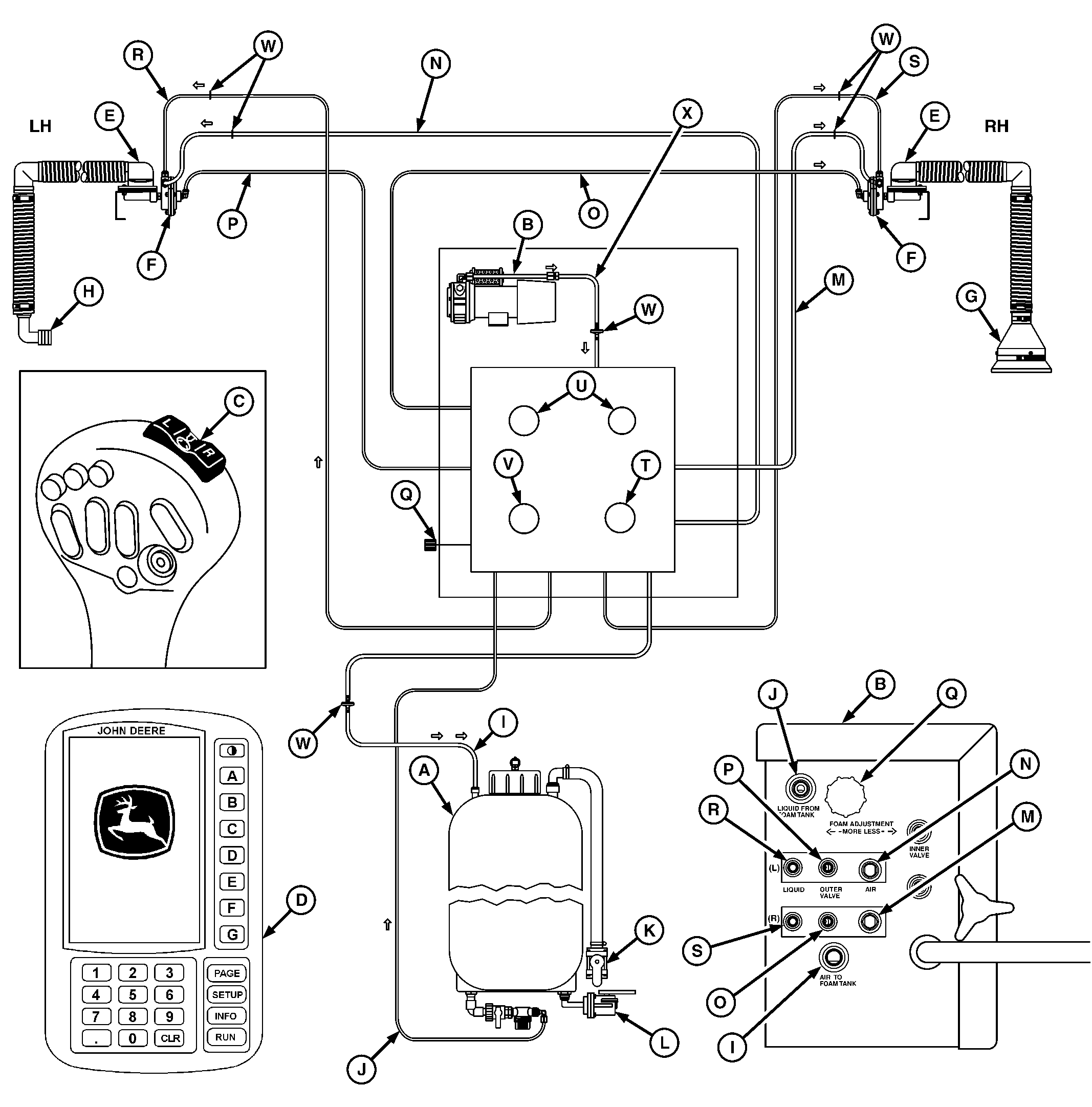

A-Foam Solution Tank
B-12 Volt Compressor
C-Foam Marker Control Switch (Right/Left/Off)
D-GREENSTAR Display
E-Foam Mixing Head
F-Shut-off Valve
G-Collector
H-Streamer (Optional)
|
I-Air Supply Hose (To Foam Solution Tank)
J-Liquid Supply Hose (To Liquid Control Valve)
K-Vent Valve
L-Fill Port
M-Air Hose (To Right-hand Foamer)
N-Air Hose (To Left-hand Foamer)
|
O-Air Shut-off Hose (To Right-hand Shut-off Valve)
P-Air Shut-off Hose (To Left-hand Shut-off Valve)
Q-Knob (Fluid-flow Control)
R-Liquid Hose (Left-hand Foamer)
S-Liquid Hose (Right-hand Foamer)
|
T-Liquid ON/Off solenoid Valve
U-Air Shut-off Solenoid Valve
V-High/Low Flow Liquid Valve
W-Check Valve
X-Air From Compressor
|
