Adjusting Transport Cradles

NOTE: Maximum vehicle heights are measured with the solution tank empty and air springs adjusted properly. Heights increase if solution tank is full and air springs are not adjusted properly.

Adjust transport position by moving cradle (A) to highest position (B) or lowest position (C).

The highest position provides easier access to cab while maintaining an overall folded height of less than 4267 mm (168 in.).

The lowest position reduces overall folded boom height to be level with cab for shipment on trailers. Vehicle height when boom in lowest cradle position is 3886 mm (153 in.).

Vehicle Height-Maximum
Cradle Position Vehicle Height-mm (in.)
High 4267 (168 in.)
Low 3886 mm (153 in.)

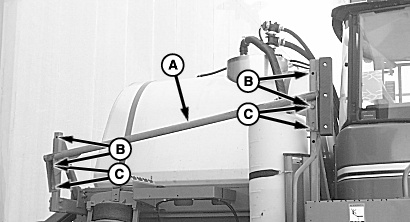

N67884


A-Transport Cradle
B-Highest Position
C-Lowest Position

OUO6092,000085B -19-15JUL05-1/1
