Change Planetary Hub Oil- 500 Hours

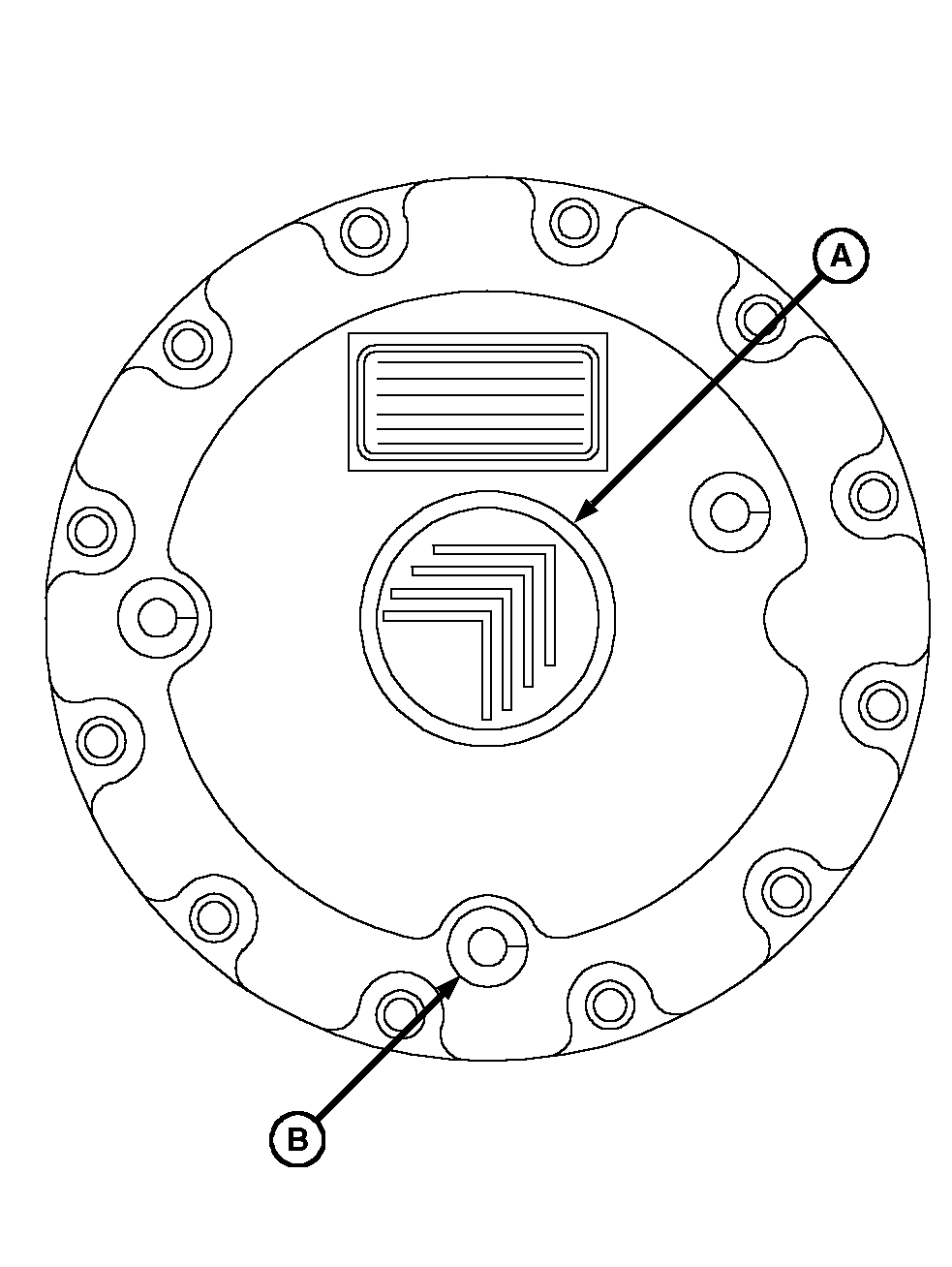

1. Park machine on flat level surface.

2. Rotate hub until casting arrow is pointed to 2 o'clock position (A).

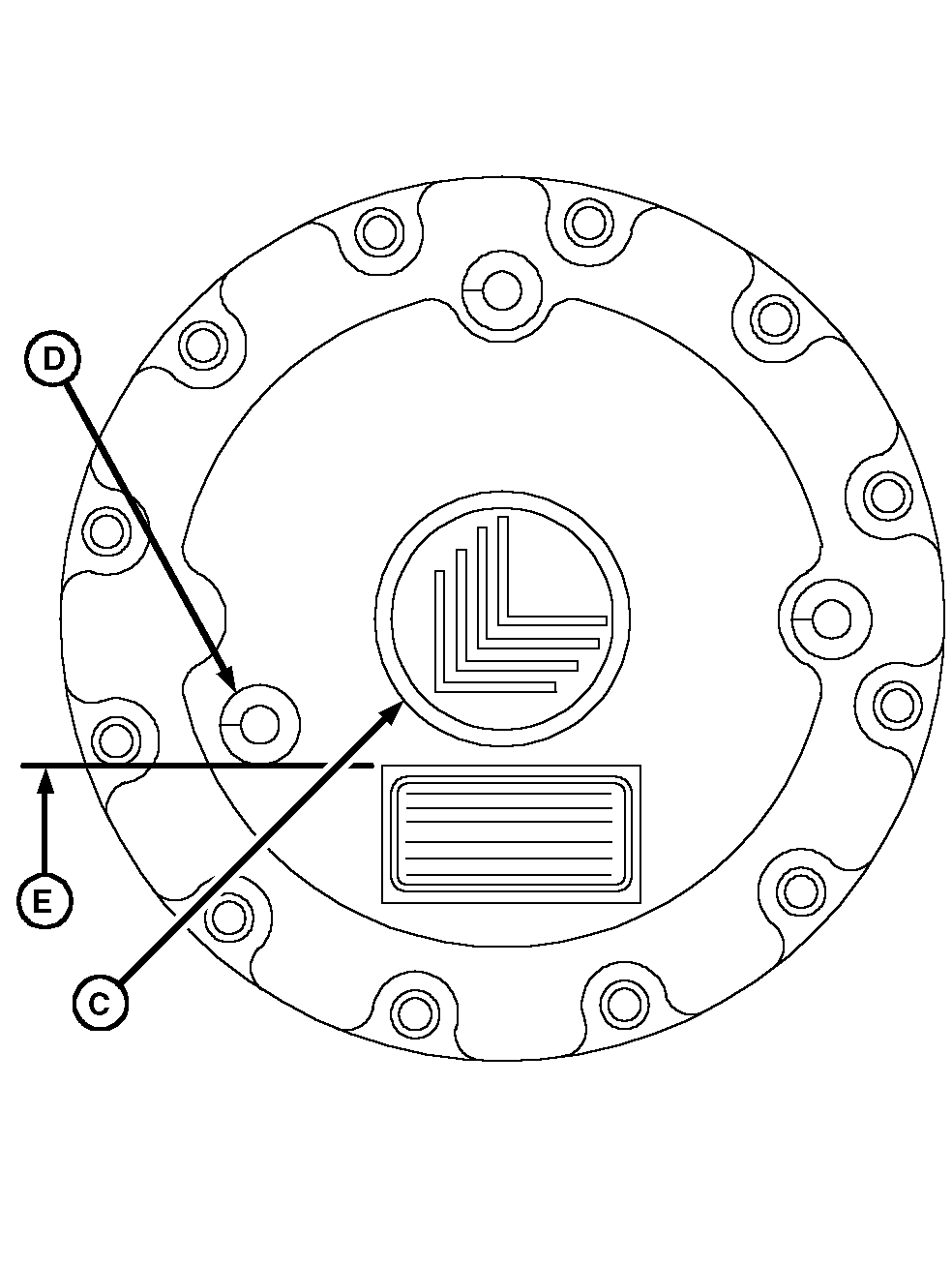

3. Remove plug (B) and drain hub oil. Reinstall plug.

4. Rotate hub until casting arrow is pointed to 8 o'clock position (C).

5. Remove fill plug (D).

6. Fill hub to oil level (E) using GL5 85W-140 gear lube. (See Specifications section for refill capacity.) Reinstall plug.


A-Arrow At 2 O'clock Position
B-Drain Plug
C-Arrow At 8 O'clock Position
D-Fill Plug
E-Fill Level

N52899
N52900

OUO6092,0000885 -19-26JUL05-1/1
