Installing Fire Extinguisher (If Equipped)

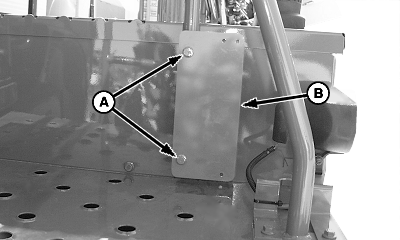

1. Remove and retain cap screws (A) retaining hand rail to platform.

2. Attach plate (B) to platform and handrail using retained screws.

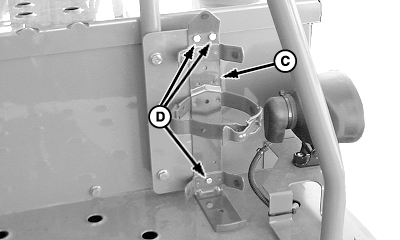

3. Attach fire extinguisher bracket (C) to plate using M6 x 16 cap screws (D) and nuts.

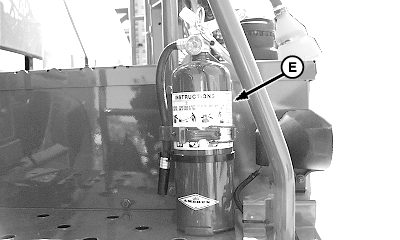

4. Install fire extinguisher (E) in bracket.


A-Cap Screws
B-Plate
C-Fire Extinguisher Bracket
D-Cap Screws, M6 x 16
E-Fire Extinguisher

N70612
N70613
N70614

OUO6092,0000888 -19-29JUL05-1/1
