Setting Flowmeter(s) Calibration Number

NOTE: Flowmeter is not recommended for boom flow rates under 15 Lpm (4 gpm).

1. Press "SETUP" to display SETUP menu.

2. Press letter button next to "SprayStar".

3. Press "PAGE".

4. Press letter button next to "Sprayer Calibrate".

5. Press letter button next to "Flow Meter Calibrate".

6. Press letter button next to "Flow Meter #1 Calibrate".

NOTE: The flowmeter calibration number is stamped on the stainless steel tag attached to the back of the GREENSTAR display. It is also etched on the flowmeter insert.

NOTE: Flowmeter calibration value range is 850-950.

7. Enter calibration number. Press letter button next to "Flow Meter #1 Calibrate" to save this value.

NOTE: If optional high flow rate plumbing is to be used, a second flow meter is required. Verify correct calibration numbers are entered for each flowmeter by removing each flowmeter insert and checking etched number on both.

8. Press letter button next to "High flow rate is:" to toggle between "ON" and "OFF".

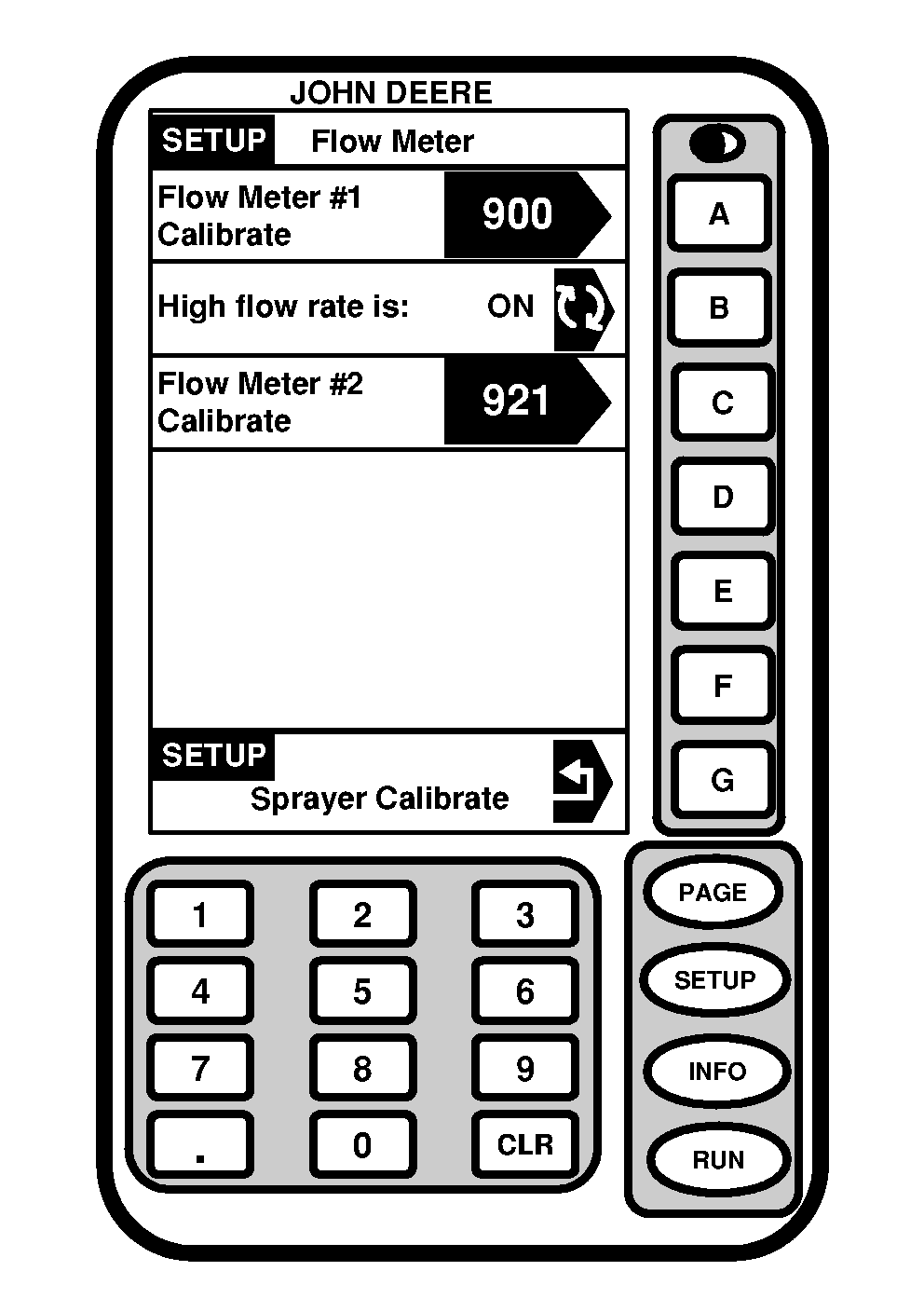

N70171

OUO6092,0000A12 -19-14JUN06-1/2

NOTE: When High flow rate is turned "ON" in SPRAYSTAR the flowmeter valve must be opened on boom. If SPRAYSTAR and flowmeter valve settings do not agree:

  • Flowmeter valve open but SPRAYSTAR High Flow "OFF " - will overapply

  • Flowmeter valve closed but SPRAYSTAR High Flow "ON " - will underapply

NOTE: If "ON" is chosen a second flow meter calibration number must be entered.

9. Press letter button next to "Flow Meter #2 Calibrate".

10. Enter calibration number. Press letter button next to "Flow Meter #2 Calibrate" to save this value.

11. Press letter button next to "Sprayer" return to calibrate sprayer menu or press "RUN" to return to Page 1 of the RUN menu.
