Enabling Boom Pressure Relief

causym CAUTION: Avoid unintended spray from nozzles. Do not use when non-John Deere after-market solution system equipment is installed. These include but are not limited to, direct injection and section ON/OFF control systems

1. Press "SETUP" to display SETUP menu.

2. Press letter button next to "SprayStar".

3. Press letter button next to "Controller Adjust".

4. Press "PAGE" to go to SETUP Controller Adjust Page 2.

5. Press letter button next to "Boom Pressure Relief" to toggle between ENABLED and DISABLED.

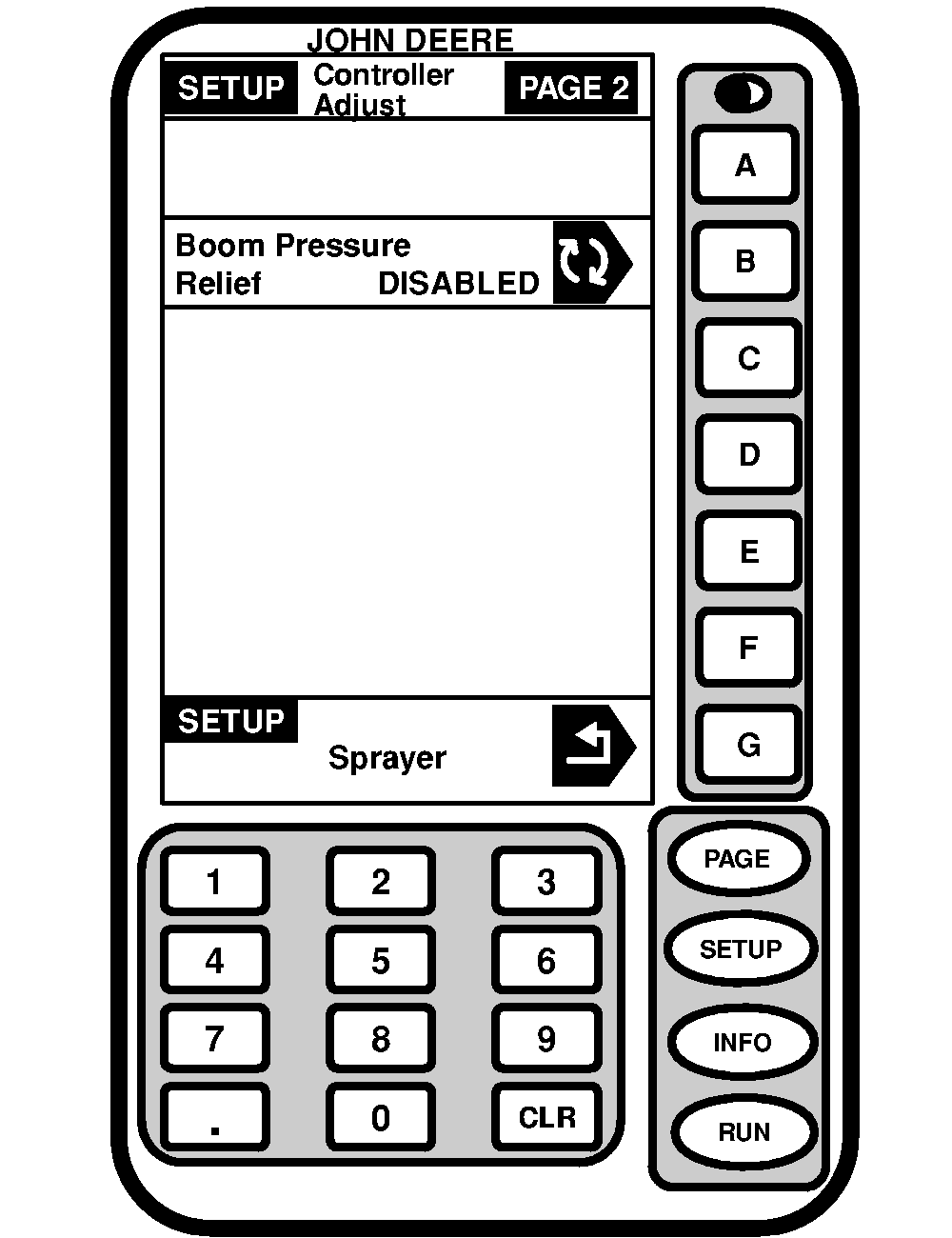

N73100

OUO6092,0000A3F -19-12JUL06-1/1
