Using Rinse System (Rinsing Solution Tank and Boom)

NOTE: After solution tank has been drained, complete the following steps when using rinse system to clean solution tank and boom assembly.

1. Start machine and operate at 1800 rpm.

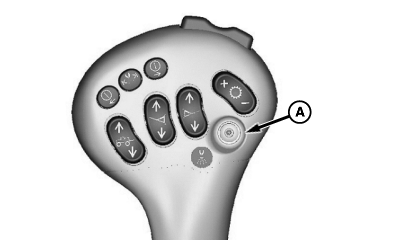

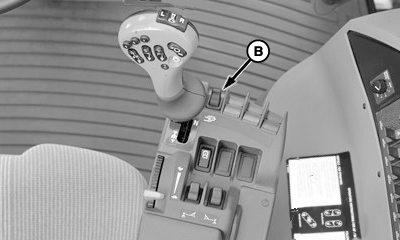

2. Turn off master "ON/OFF" switch (A) and solution pump switch (B).


A-Master ON/OFF Switch
B-Solution Pump Switch

N66488
N67620

OUO6092,0000B9F -19-15AUG06-1/8

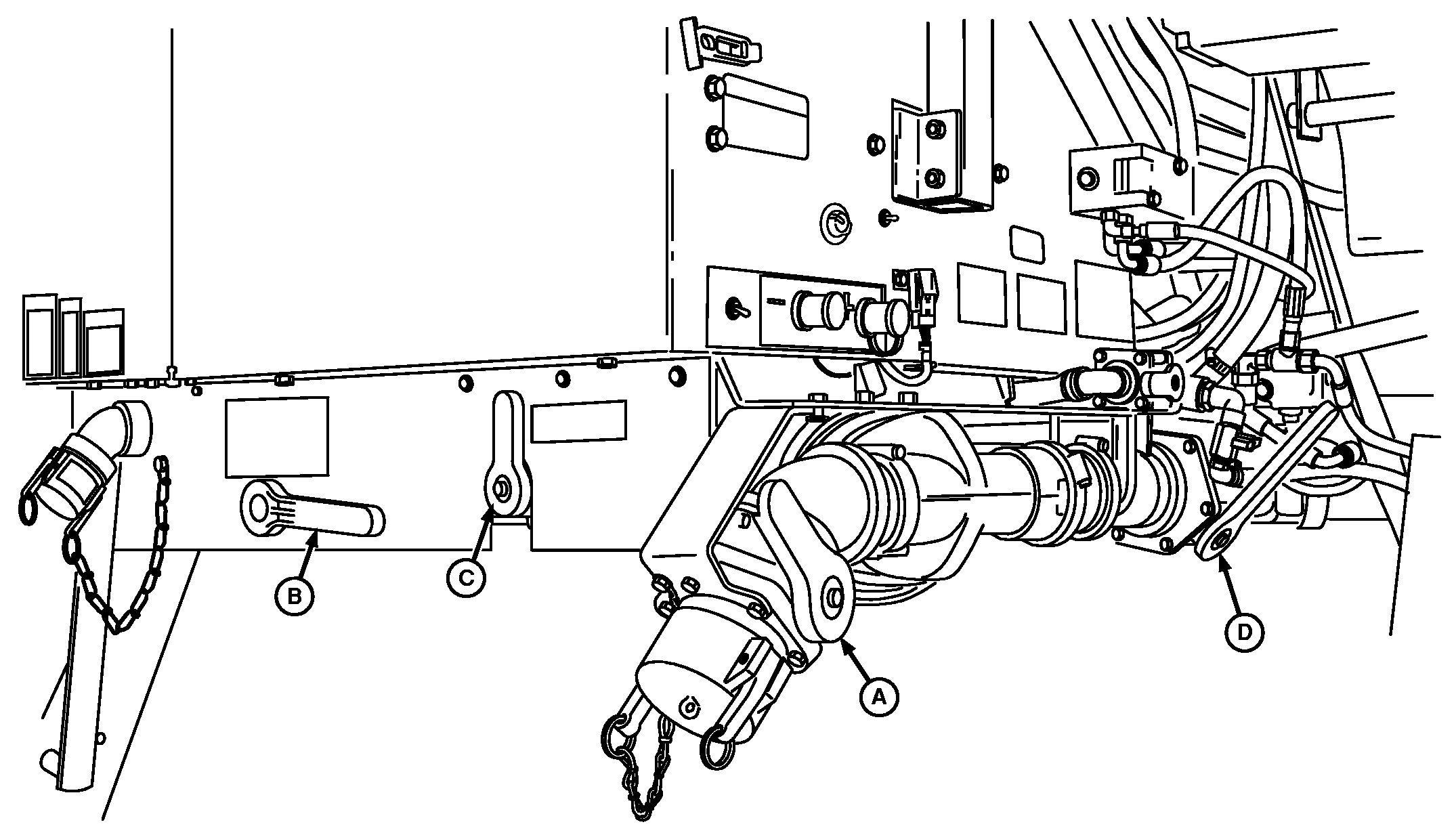

N67690


A-QUIK-FILL Valve


B-Suction Valve


C-Pressure Valve


D-Bypass Valve

IMPORTANT: To avoid chemical getting into rinse tank open QUIK-FILL valve (A) and drain lines into bucket or suitable container. If lines do not drain in less than 1 minute contact your John Deere dealer.

3. Turn suction valve (B) to "RINSE TANK" position.

4. Turn pressure valve (C) to "TANK RINSE NOZZLE" position.

5. Turn bypass valve (D) to "NORMAL" position.

OUO6092,0000B9F -19-15AUG06-2/8

6. Depress agitation switch (A) to open electric agitation valve.

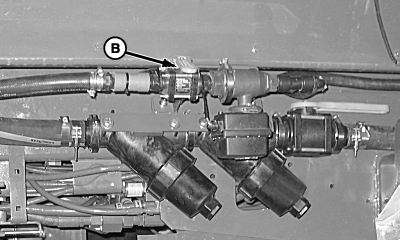

7. Open agitation valve (B).

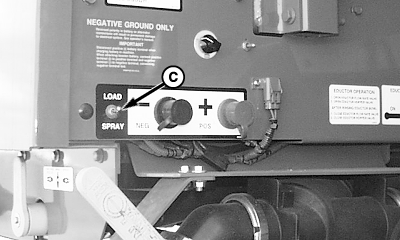

8. Move remote pump switch (C) to "LOAD" position.

NOTE: When using remote solution pump switch (F), pump is designed to come up to operating speed slowly. Engine speed will automatically increase to 1800 rpm.

9. Add water to solution tank to thoroughly clean spray system. Add cleaning agents if necessary.


A-Agitation Switch
B-Agitation Valve
C-Remote Pump Switch

N66745
N73383
N67695

OUO6092,0000B9F -19-15AUG06-3/8

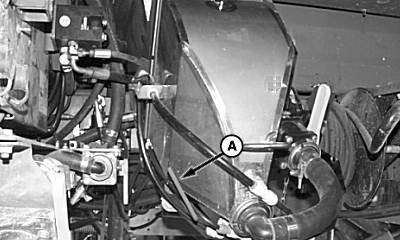

10. Slightly raise eductor and pull handle (A) to unlatch eductor.

11. Lower eductor and raise lid.


A-Handle

N73391

OUO6092,0000B9F -19-15AUG06-4/8

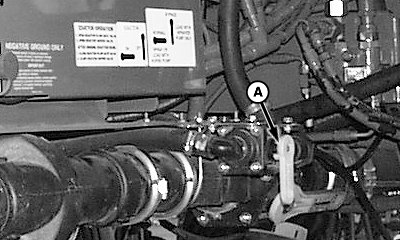

NOTE: The eductor flow rate valve (A) is a variable rate valve that controls the flow rate of the eductor. The farther "ON" the valve the greater suction created for the eductor.

12. Turn eductor flow rate valve (A) to full "ON" position.


A-Eductor Flow Rate Valve

N63538

OUO6092,0000B9F -19-15AUG06-5/8

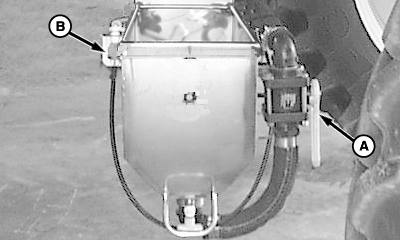

13. Open eductor hopper valve (A) (handle parallel with solution hose) to allow rinse solution to be drawn from eductor hopper.

14. Open eductor rinse valve (B) (turn clockwise) to rinse eductor hopper.

15. Close eductor rinse valve.


A-Eductor Hopper Valve
B-Eductor Rinse Valve

N63539

OUO6092,0000B9F -19-15AUG06-6/8

16. After verifying eductor is empty, close eductor flow rate valve (A).

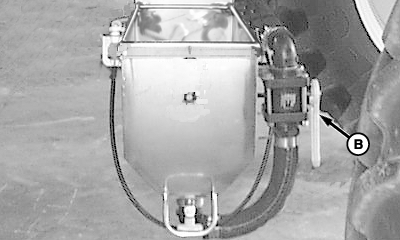

17. Close eductor hopper valve (B).

18. Place lid back on hopper and lift eductor back to its original position.


A-Eductor Flow Rate Valve
B-Eductor Hopper Valve

N63538
N63541

OUO6092,0000B9F -19-15AUG06-7/8

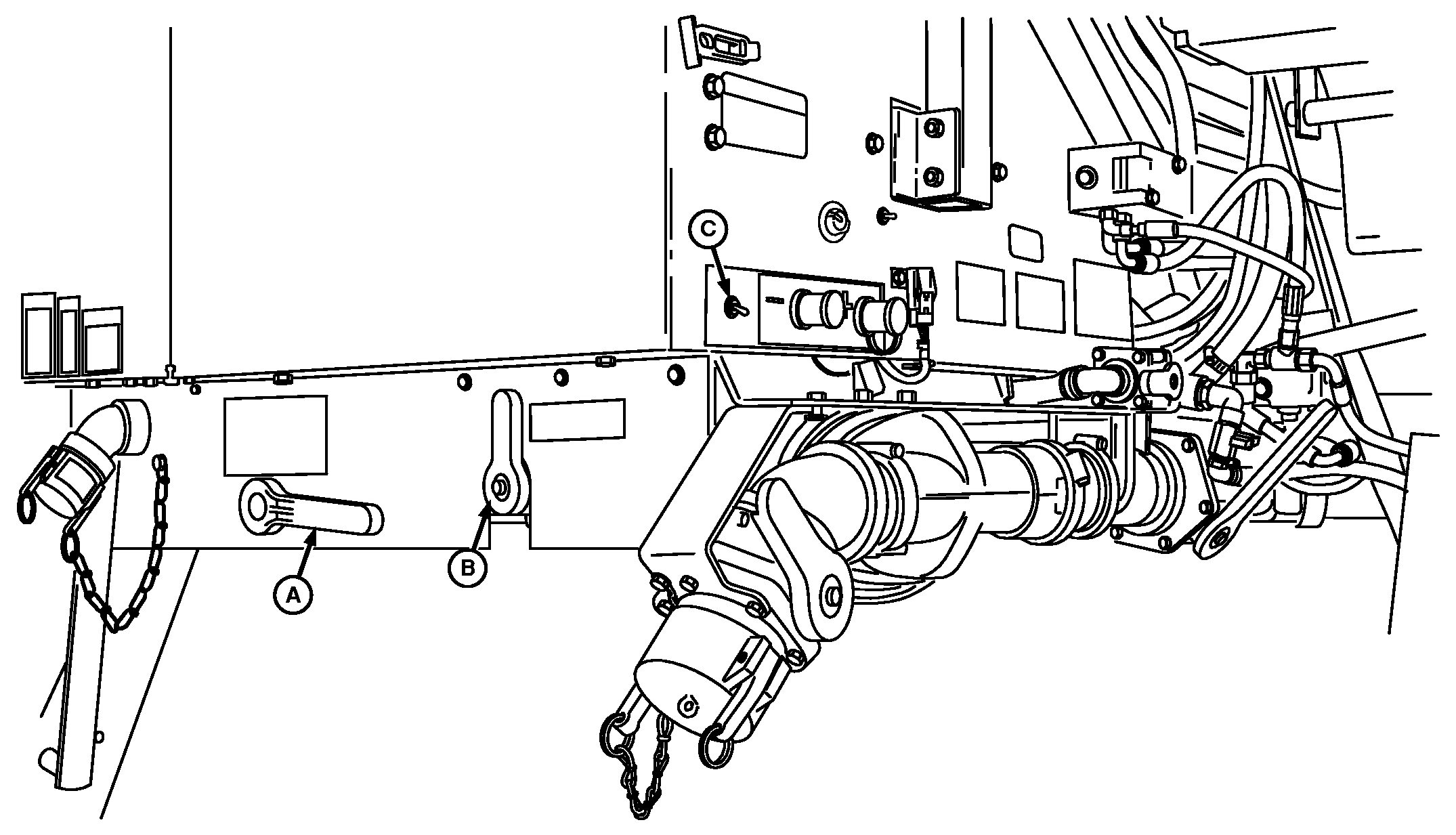

N67691


A-Suction Valve

B-Pressure Valve

C-Remote Solution Pump Switch



19. Turn suction valve (A) from "RINSE TANK" to "SOLUTION TANK" position.

20. Turn pressure valve (B) to "SPRAY" position.

21. Move remote pump switch (C) to "SPRAY" position.

22. Turn on spray system and spray rinse water through boom assembly and fence nozzles (if equipped).

OUO6092,0000B9F -19-15AUG06-8/8
