Cleaning Flowmeter(s)-Daily

CAUTION: Do not close the flowmeter shut-off valve with the solution pump running. This can trap pressure in the boom that can be hazardous when removing flowmeters for cleaning.

2. Close flowmeter shut-off valve (A).

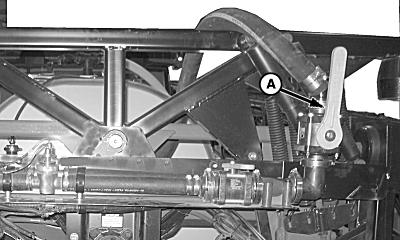

A-Flowmeter Shut-off Valve

OUO6092,0000BA2 -19-16AUG06-1/2

CAUTION: Do not drain solution onto the ground. Drain into a container. Drain solution in an area where people, animals, vegetation and water supply, etc., cannot be contaminated.

3. Unscrew flowmeter inserts (C) and remove.

4. Clean inserts with clean soapy water. Make sure turbine (D) turns easily. If the turbine still does not turn easily, use John Deere Brake and Parts Cleaner (Part No. TY16041).

5. Install insert in flowmeters.

6. Open flowmeter shut-off valve.

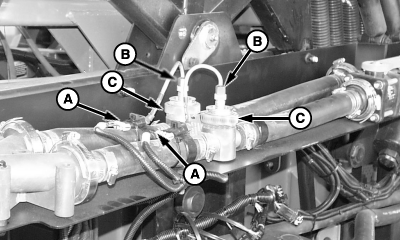

A-Electrical Connectors
B-Sensors
C-Flowmeter Inserts
D-Turbine

OUO6092,0000BA2 -19-16AUG06-2/2
