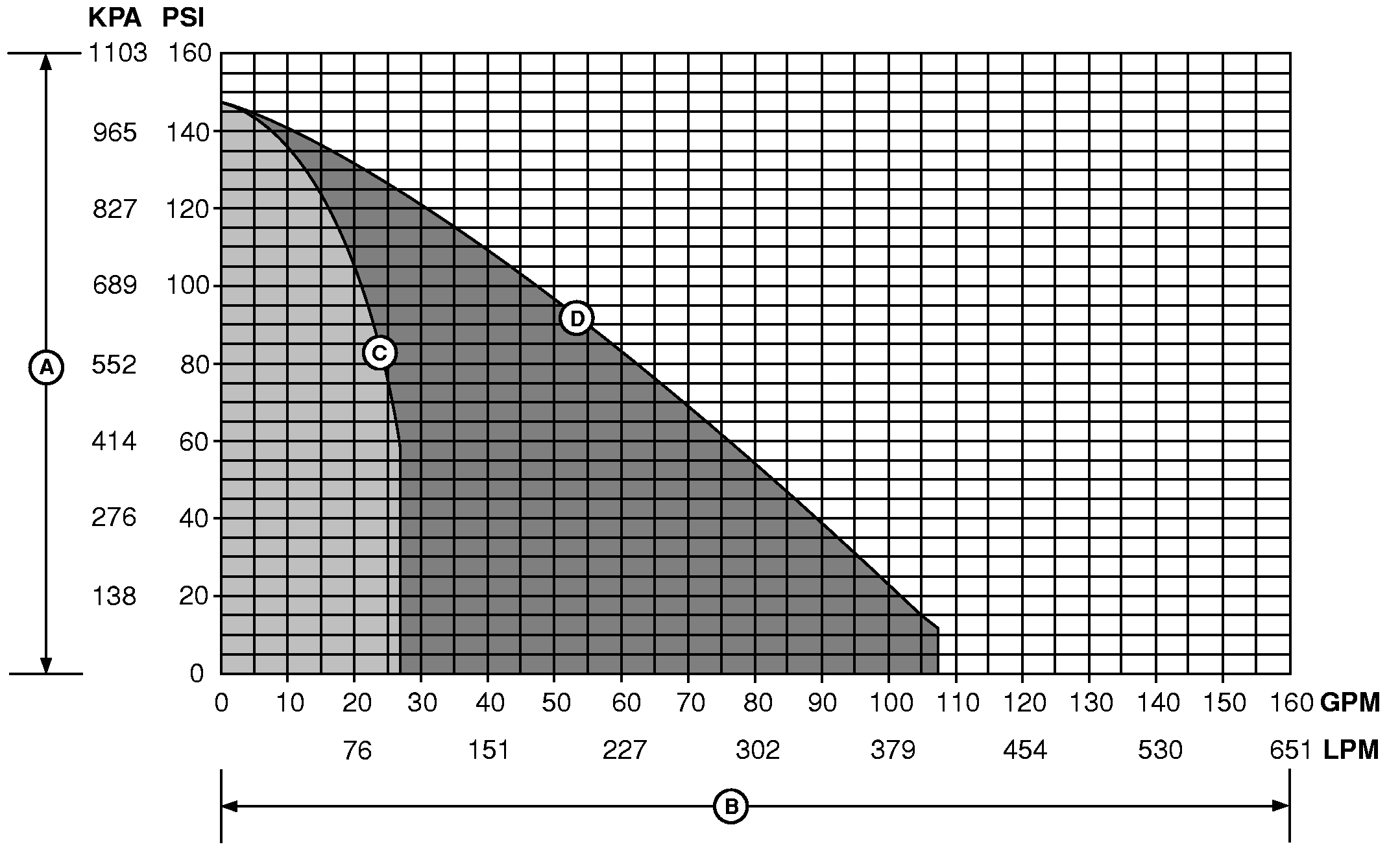

Boom Flow Characteristics-Boom Flow Rate vs. Pressure 18.3 (60 ft.) Boom

A-System Pressure

B-System Flow

C-Orifice Valve Closed

D-18.3 M (60 ft)

NOTE: Boom flow rate is not recommended under 15 L/min (4 gpm) due to system limitations. The curves show the maximum output. They are shown with agitation off. Using agitation will reduce maximum output.

* A pressure drop occurs between the pressure sensor located on boom section shut-off valves and the nozzle tip. The larger the flow rate, the larger the pressure drop.
