Filling Solution Tank with Nurse Tank Pump
|
|
IMPORTANT: Do not add chemical to solution tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.
|
causing serious injury or death to you or others. Before removing QUIK-FILL cap, make sure QUIK-FILL valve is turned off.

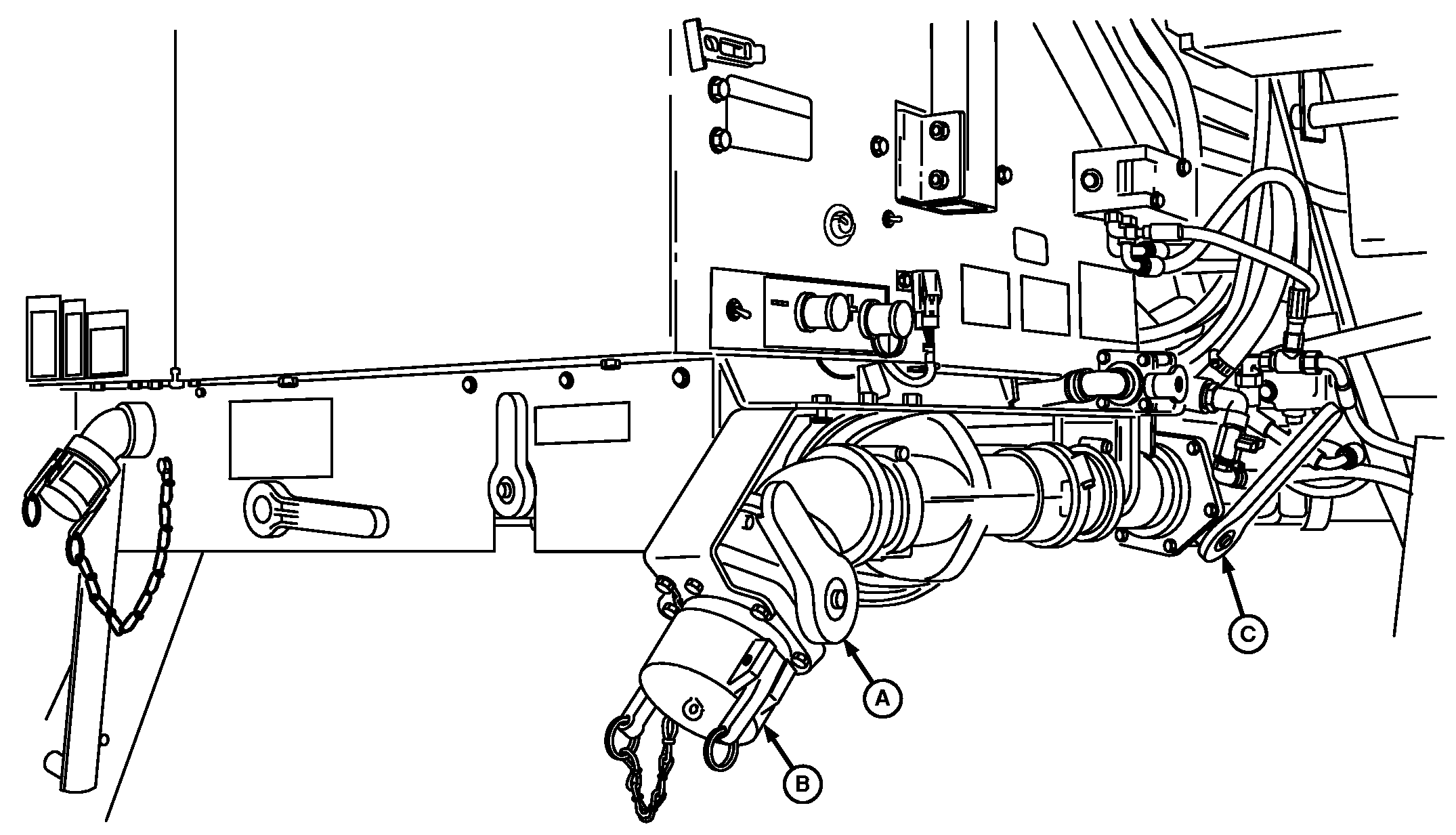

1. Verify QUIK-FILL valve closed. 2. Open lock levers and remove cap (B). 3. Connect nurse tank fill hose to QUIK-FILL adapter and close lock levers. 4. Turn bypass valve (C) to "NORMAL" position. |
CAUTION:
Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals or you may be exposed to hazardous materials which could poison and injure you.
OUO6092,0000BB0 -19-16AUG06-1/2 |
|
5.
Close strainer shut-off valve (A) when filling sprayer using nurse system pump to avoid air being forced into boom.
6. Turn on nurse tank pump and open QUIK-FILL valve. 7. After solution tank has filled, close QUIK-FILL valve. 8. Turn off nurse tank pump. 9. Remove fill hose from QUIK-FILL adapter and replace cap. 10. Open strainer shut-off valve. |
|
OUO6092,0000BB0 -19-16AUG06-2/2 |
