Preparing to Spray

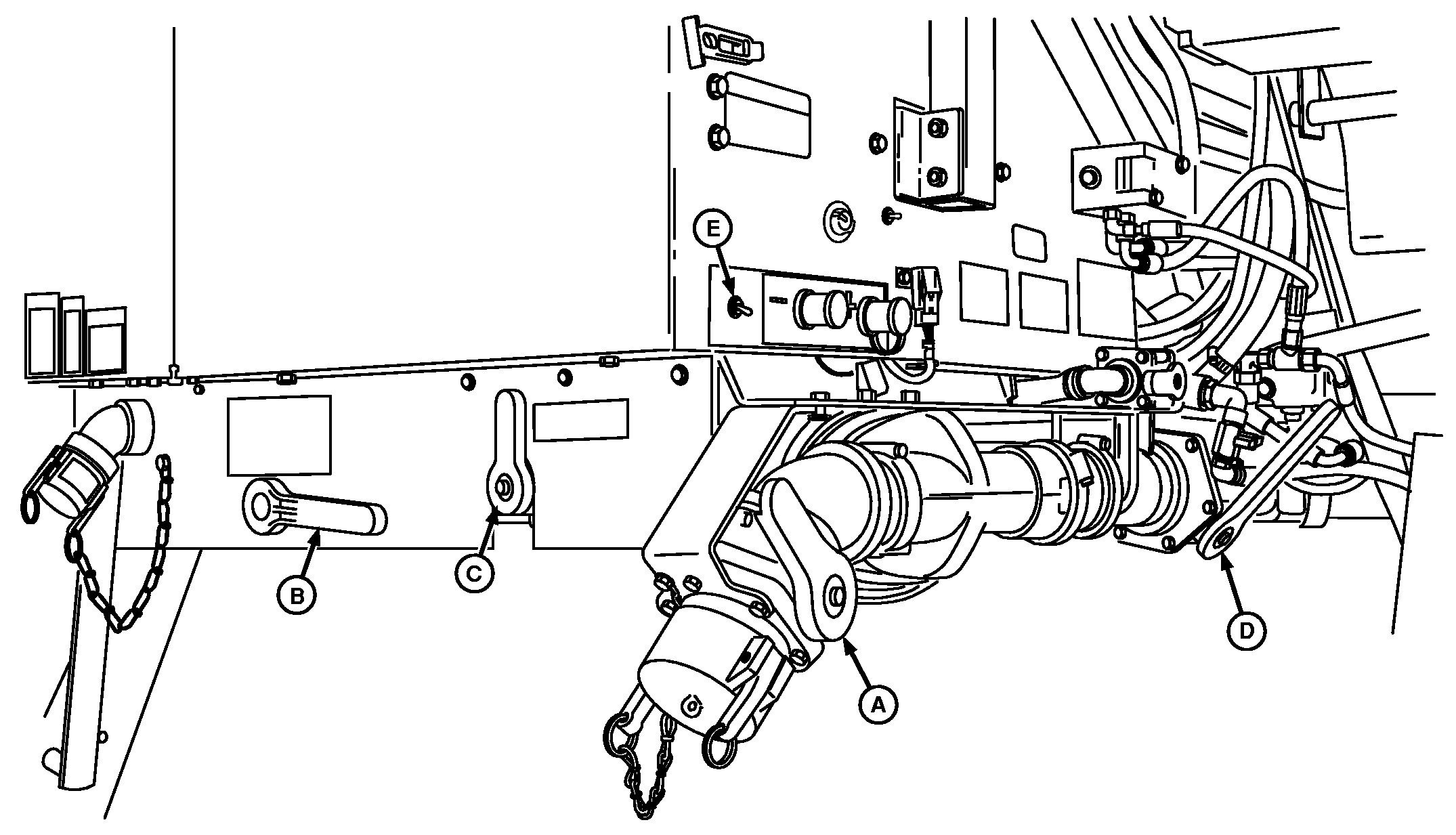

N67689


A-QUIK-FILL Valve
B-Suction Valve


C-Pressure Valve


D-Bypass Valve


E-Remote Solution Pump Switch

1. Verify QUIK-FILL valve (A) is closed.

2. Turn suction valve (B) to "SOLUTION TANK" position.

3. Turn pressure valve (C) to "SPRAY" position.

4. Turn bypass valve (D) to "NORMAL" position.

5. Verify remote pump switch (E) is in "SPRAY" position.

OUO6092,0000BB6 -19-16AUG06-1/3

6. Verify strainer shut-off valve (A) is open.


A-Strainer Shut-Off Valve

N73111

OUO6092,0000BB6 -19-16AUG06-2/3

7. Push solution pump switch (A) forward to engage solution pump.

8. Verify boom switches (B) are in upward position.


A-Solution Pump Switch

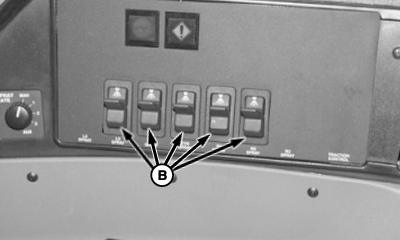

B-Boom Switches

N66744
N67614

OUO6092,0000BB6 -19-16AUG06-3/3
