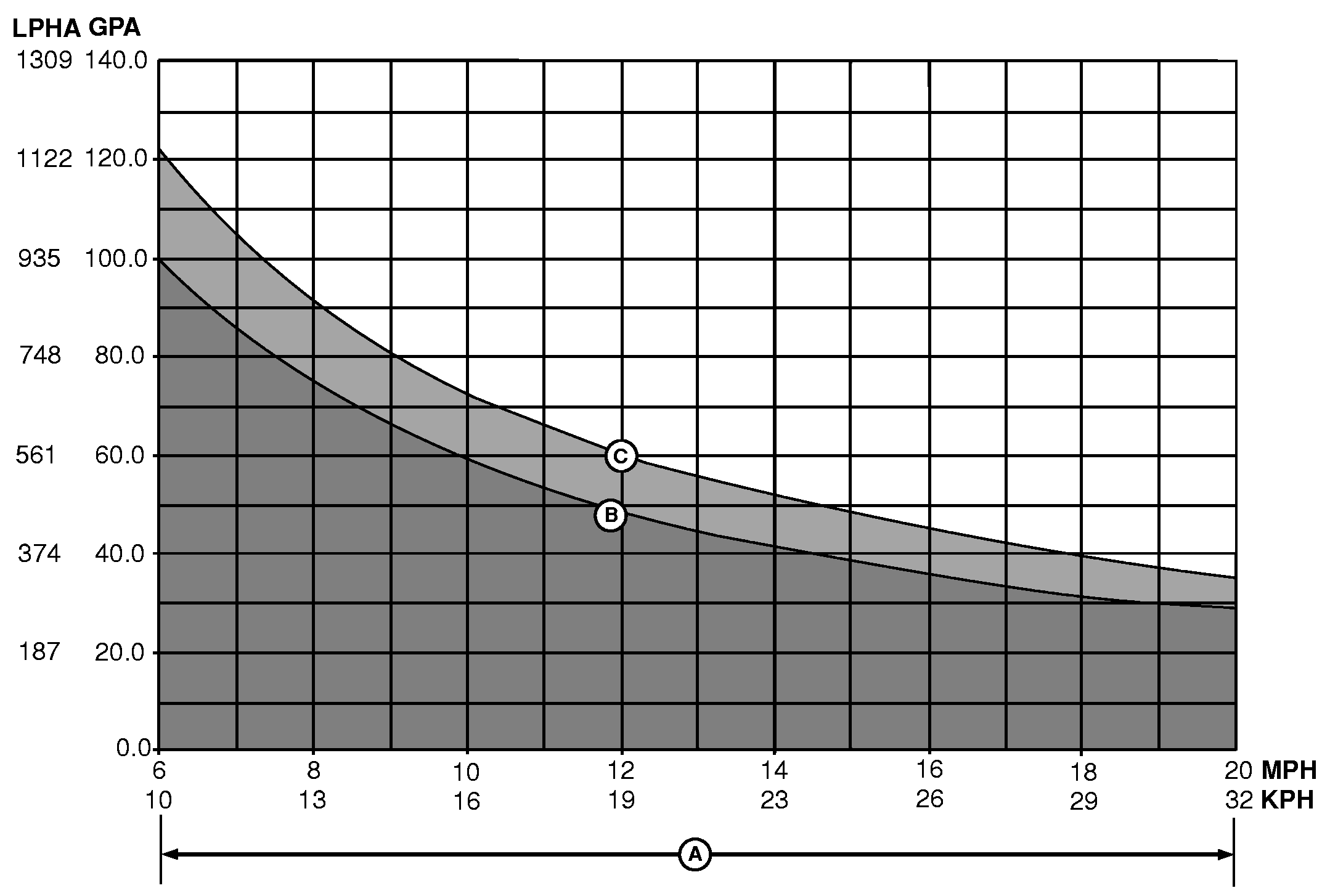

27.4 M (90 ft) Boom Flow Characteristics-Application Rate vs. Speed

A-Vehicle Speed

B-Standard Plumbing

C-High Flow Plumbing

NOTE: Ranges shown are based on water application. Performance curves shown with agitation off. Using agitation will reduce maximum output.
