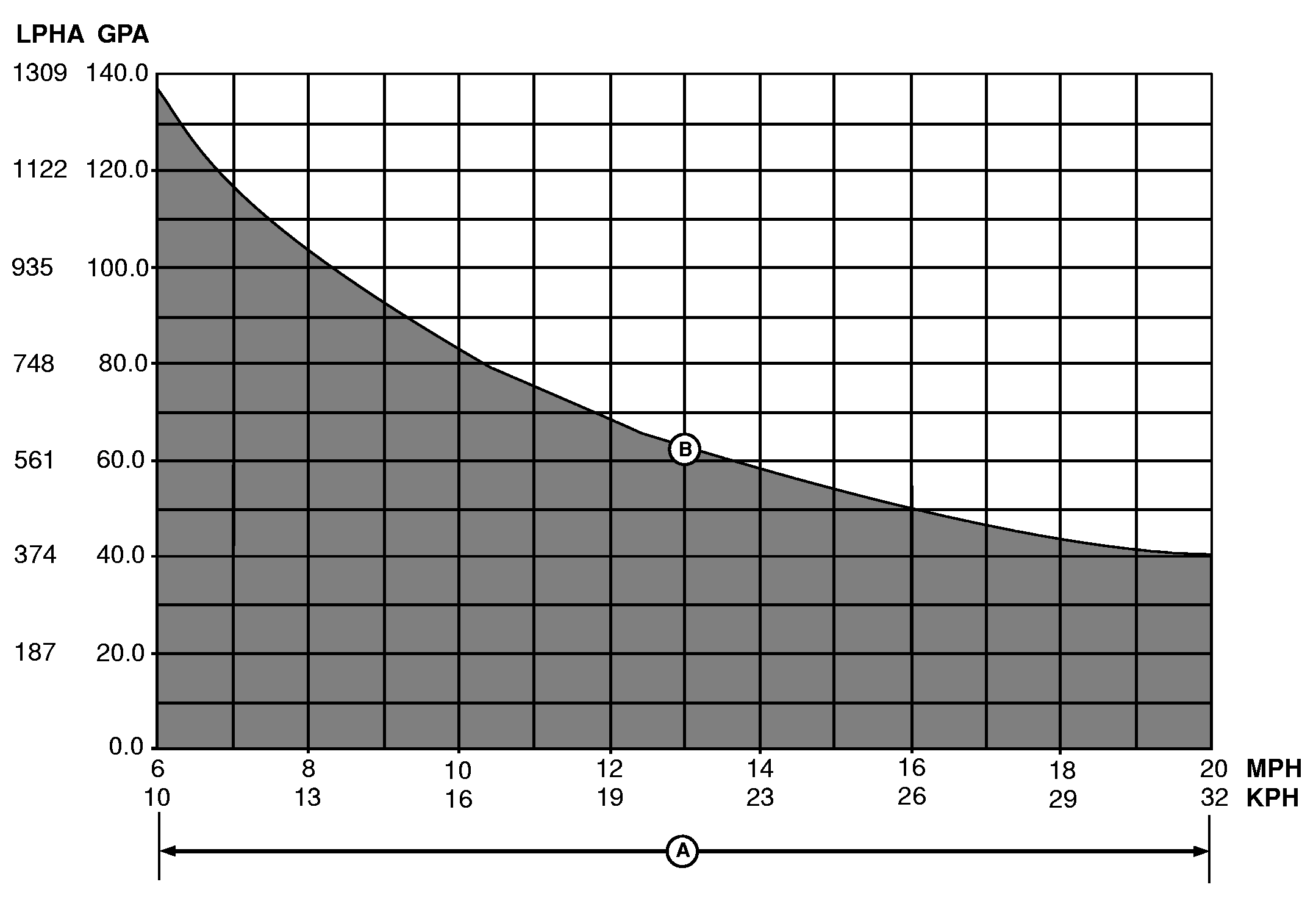

18.3 M (60 ft) Boom Flow Characteristics-Application Rate vs. Speed

A-Vehicle Speed

B-Standard Plumbing

NOTE: Ranges shown are based on water application. Performance curves shown with agitation off. Using agitation will reduce maximum output.

OUO6092,0000CE9 -19-31OCT06-1/1
