Replacing Halogen Driving Light Bulbs

NOTE: High/low beam driving lights are mounted in front of hood grille when tractor is equipped with Xenon-HID lighting option.

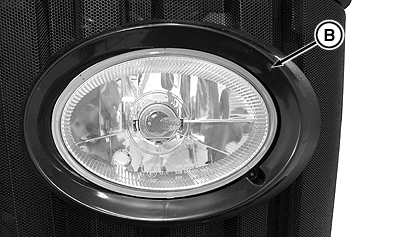

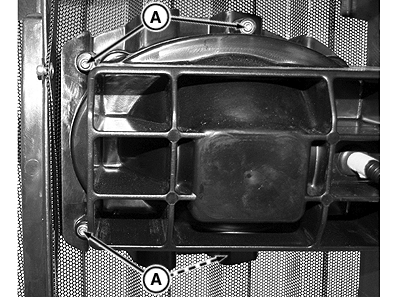

1. Remove screws (A) and cover (B).


A-Screws
B-Cover

RXA0086435
RXA0086437

DP99999,0000171 -19-18JAN07-1/3

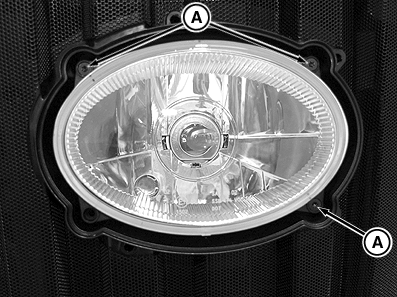

2. Remove screws (A).

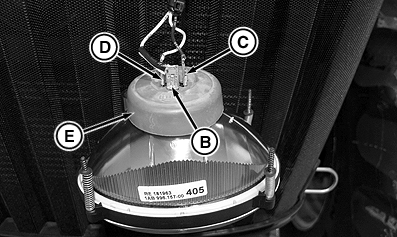

3. Disconnect wires (B), (C), and (D) and remove boot (E).


A-Screws
B-Yellow Wire
C-Black Wire
D-White Wire
E-Boot

RXA0086430
RXA0086428

DP99999,0000171 -19-18JAN07-2/3

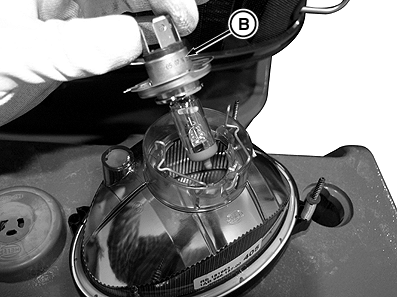

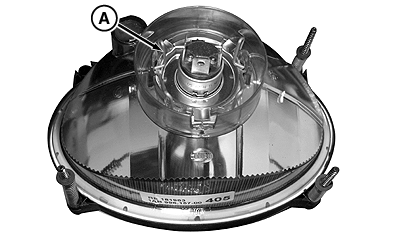

4. Remove retaining spring (A) and light bulb (B).

5. Install new light bulb in reverse order of removal.

6. Adjust driving lights, if necessary. (See Adjusting Headlights in this section.)


A-Retaining Spring
B-Light Bulb

RXA0086424
RXA0086426

DP99999,0000171 -19-18JAN07-3/3
