Identification Numbers

Copy these pages to record component serial numbers. This will help when acquiring service parts.

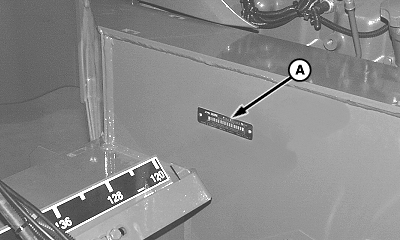

The product identification number (A) is on left-hand side of frame.

Product Identification Number _________________________

A-Product Identification Number

DP99999,0000188 -19-24JAN07-1/7

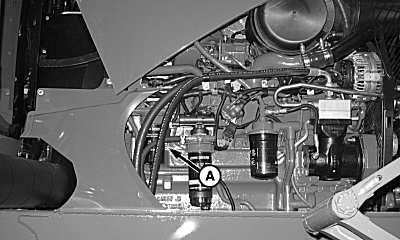

The engine serial number (A) is on the right-hand side of engine block behind fuel filter.

Engine Serial Number _______________________________

A-Engine Serial Number

DP99999,0000188 -19-24JAN07-2/7

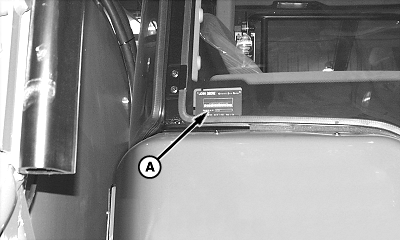

The cab serial number (A) is located at lower rear corner of right-hand cab side glass.

Cab Serial Number _________________________________

A-Cab Serial Number

DP99999,0000188 -19-24JAN07-3/7

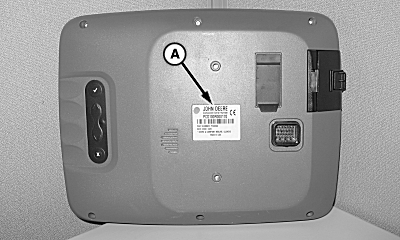

The monitor serial number is located on the back of the monitor.

Monitor Serial Number ________________________________

A-Monitor Serial Number

DP99999,0000188 -19-24JAN07-4/7

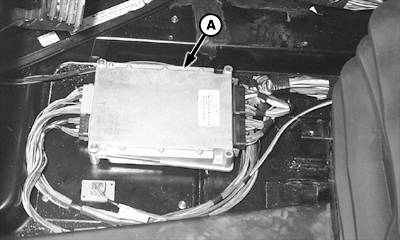

The chassis control unit serial number is on the unit located under the cab floor.

Chassis Control Unit Serial Number _______________________________

A-Chassis Control Unit

DP99999,0000188 -19-24JAN07-5/7

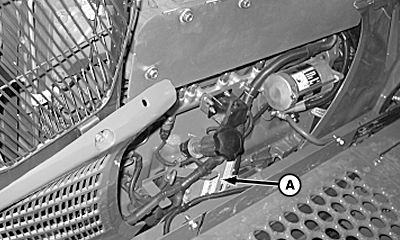

The engine control unit serial number is located on the unit on the left side of the engine.

Engine Control Unit Serial Number _______________________________

A-Engine Control Unit

DP99999,0000188 -19-24JAN07-6/7

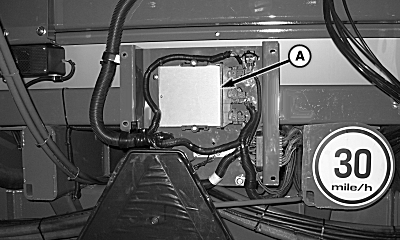

The boom controller serial number is located on the unit on the rear of the machine below the boom lift hardware.

Boom Controller Serial Number _______________________________

A-Boom Controller

DP99999,0000188 -19-24JAN07-7/7
