Diagnostic Tests

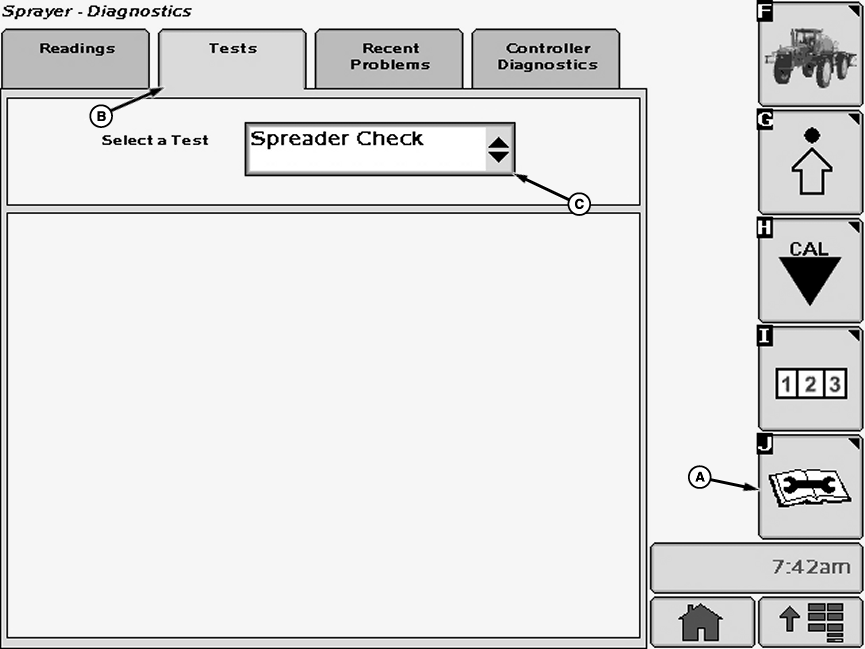

N74859


A-Diagnostics Softkey

B-Tests Tab

C-Drop-Down Menu



1. Select the Diagnostics softkey (A) to view the sprayer diagnostics menu.

2. Select the "Tests" tab (B).

3. Select a test from the tests drop-down menu (C).

OUO6092,0000D86 -19-06FEB07-1/1
