Job Summaries and Current Totals

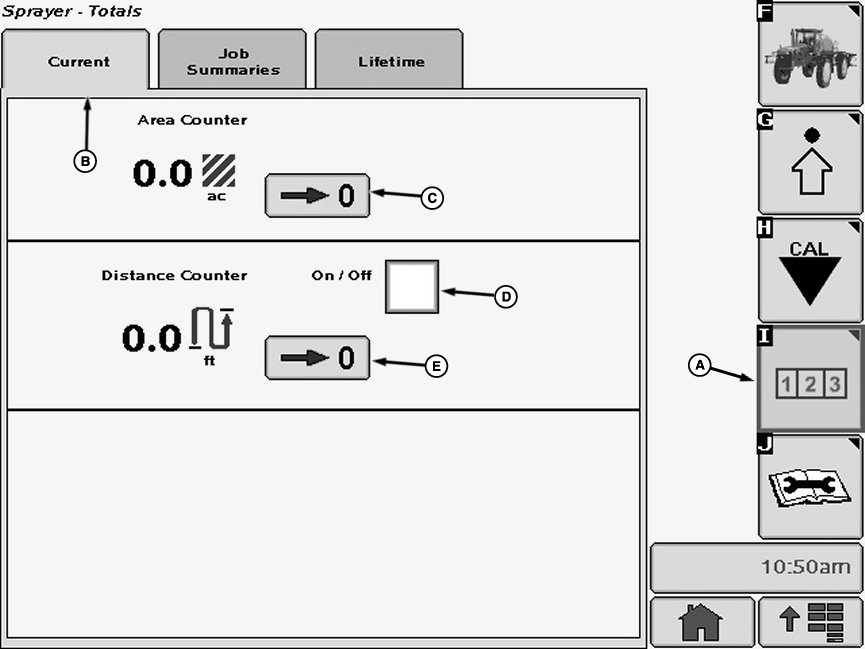

A-Reports and Totals Softkey B-Current Tab

C-Reset Button

D-Check Box

E-Zero Button

Current Totals 1. Select the Reports and Totals softkey (A) to view the sprayer totals menu.

2. Select the "Current Tab" tab (B). The current totals page will display instant values.

OUO6092,0000D88 -19-05FEB07-1/3

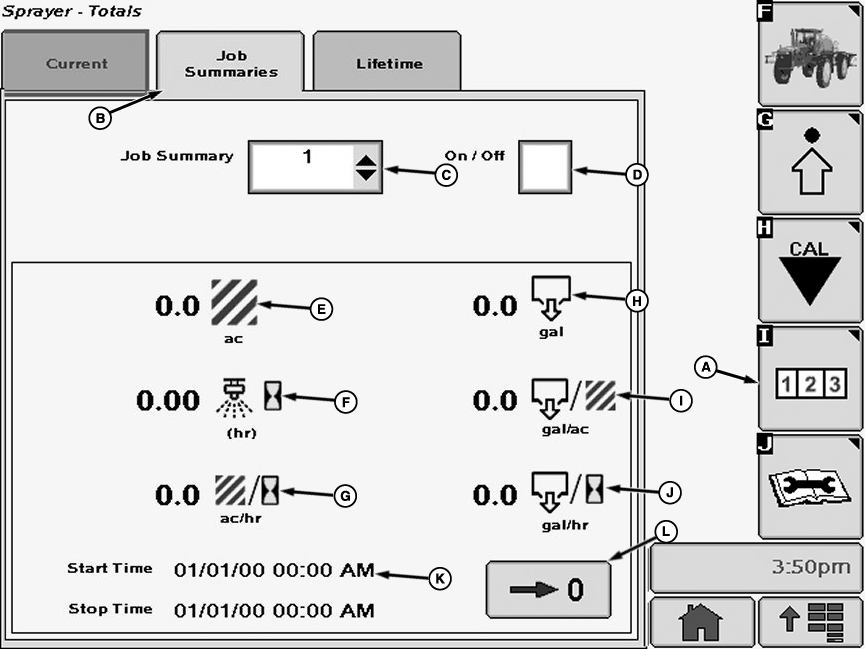

A-Reports and Totals Softkey B-Job Summaries Tab C-Job Summary Drop Down Menu

D-Check Box E-Area(ac) F-Time Spent Spraying

G-Area Per Hour H-Volume I-Volume Per Area

J-Volume Per Hour Sprayed K-Start and Stop Times L-Zero Button

Job Summaries 1. Select the Reports and Totals softkey (A) to view the sprayer totals menu. 2. Select the "Job Summaries" tab (B). The job summaries page will keep track of all totals listed on the job page. To create a new job follow these steps: 1. Press the "New" button and a keypad will appear.

2. Type in a name for the current job on the key pad. 3. Press enter. 4. Select the desired job from the job summary drop down menu. Jobs that are no longer needed may be deleted by pressing the remove button. Totals can be reset to zero by pressing the zero button. Lifetime Totals

OUO6092,0000D88 -19-05FEB07-2/3

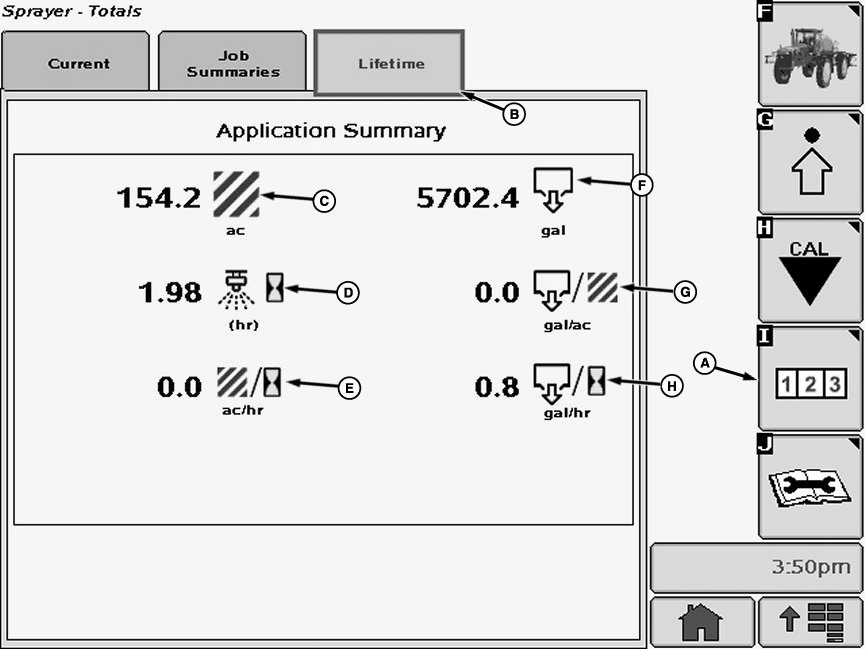

A-Reports and Totals Softkey B-Lifetime Tab

C-Area D-Time Spent Spraying

E-Area Per Hour F-Volume

G-Volume Per Area H-Volume Per Hour Sprayed

The "Lifetime" page acts as a general history of job summaries. It will keep track of total area covered,

time spent spraying, total volume sprayed, and machine hours.

OUO6092,0000D88 -19-05FEB07-3/3
