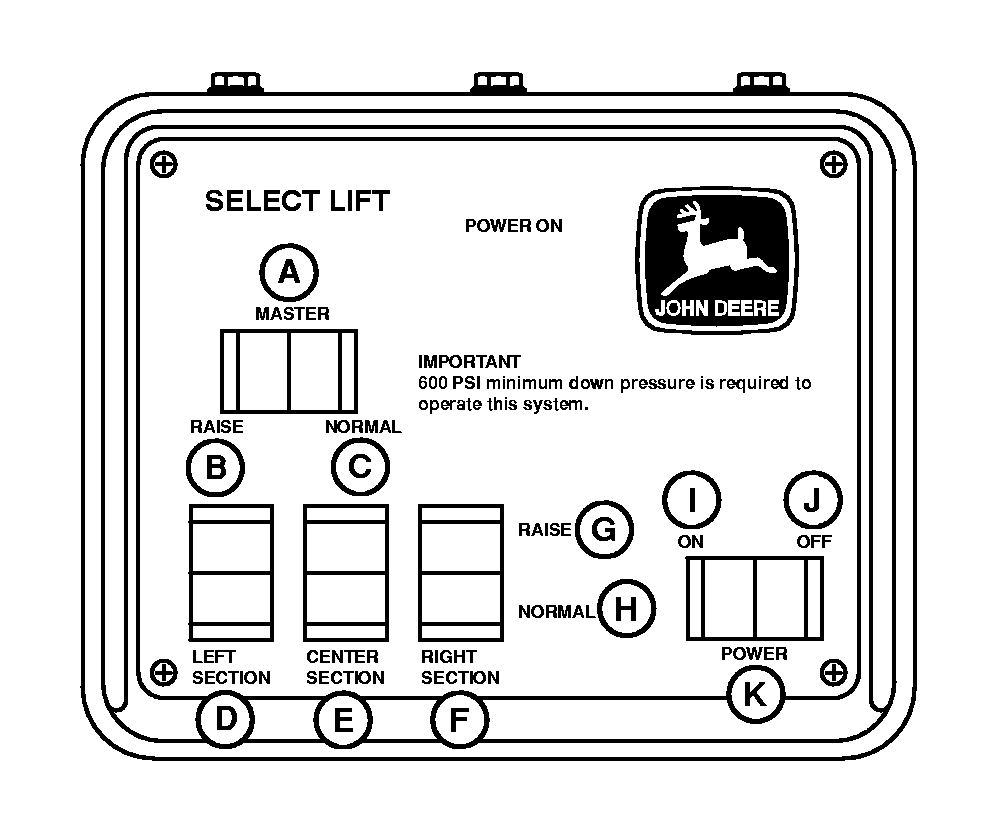

Select Lift

With optional select lift installed the operator has the choice of raising the openers individually or all at once on two and three unit machines.


A-MASTER
B-RAISE
C-NORMAL
D-LEFT SECTION
E-CENTER SECTION
F-RIGHT SECTION
G-RAISE
H-NORMAL
I-ON
J-OFF
K-POWER

N81684

AG,OUO1018,56 -19-12SEP08-1/1
