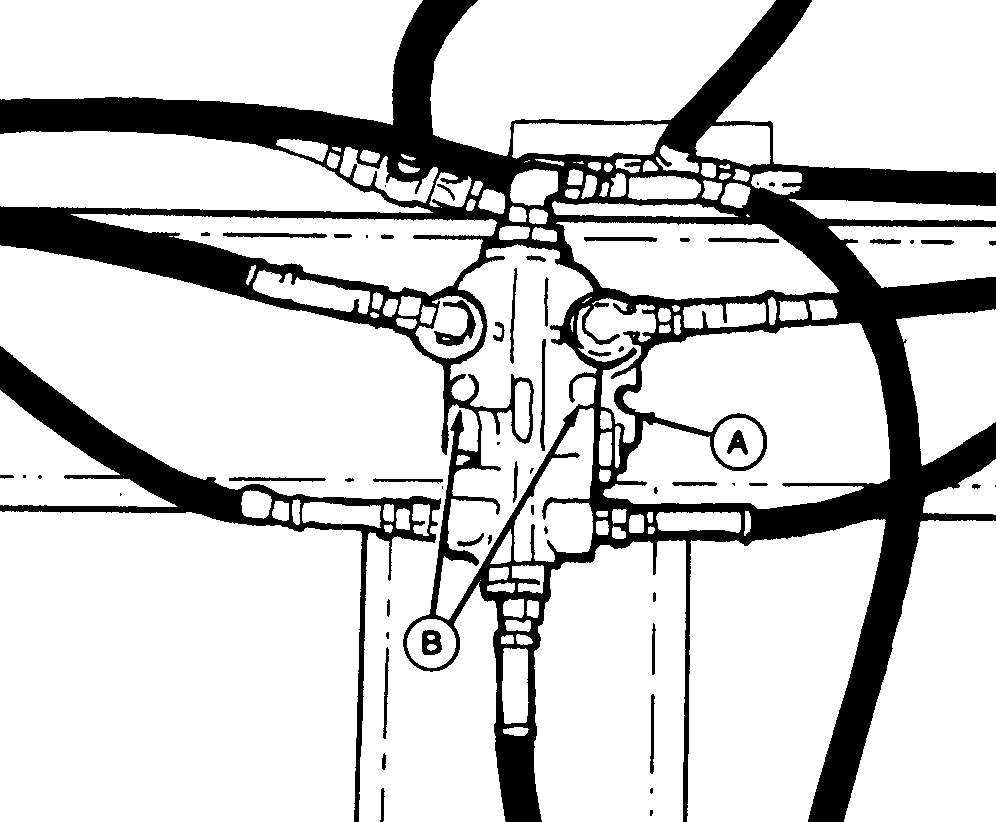

Row Marker Sequencer ControlThe sequencer control valve (A) allows for continuous planting without interference from field obstructions. The markers will raise and lower alternately each time the remote cylinder operating lever is moved. To lower both markers pull cylinder operating lever briefly rearward, then release lever. This will cause the opposite marker to lower. Both markers will raise when the remote cylinder operating lever is activated.
|
|
