Lubrication
|

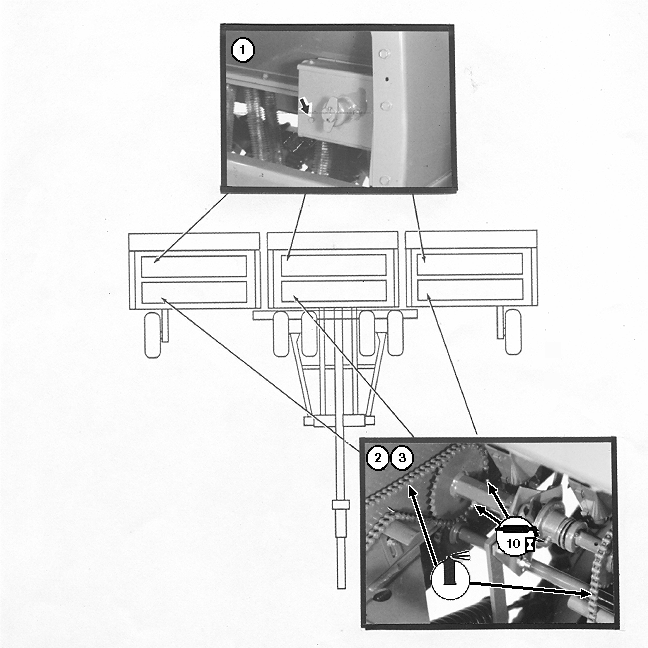

| 1. Remove gear case level screw (bold arrow) annually to check oil level. If no oil runs out, add oil through the hole or by removing the top cover. If water or dirt contaminates oil, remove plug from bottom of gear case to change. |
2. Throw-out clutch. 3. Lubricate chains with John Deere TY6350 Multipurpose Spray Lube as required. |
AG,OUO1018,74 -19-01APR99-1/3 |
|
|

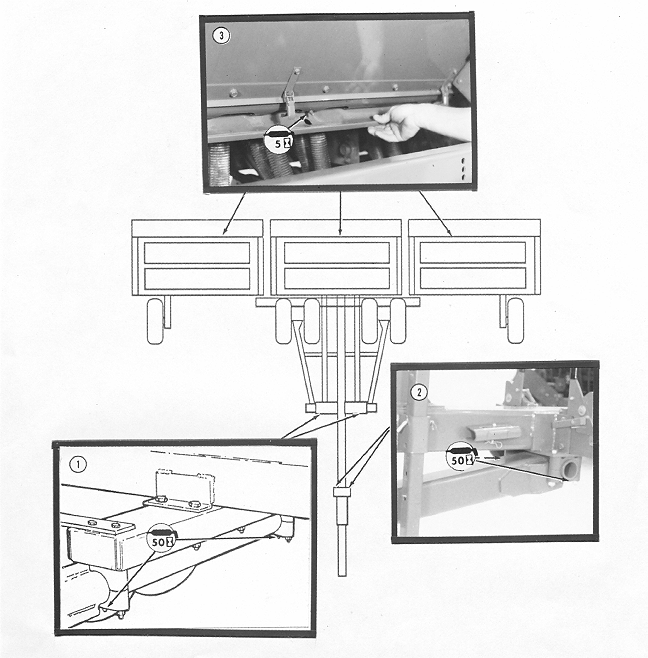

1.
Lubricate hitch pivots.
2. Lubricate hitch pivots. |
3. Lubricate fertilizer feed shaft bearings. |
AG,OUO1018,74 -19-01APR99-2/3 |
|
|

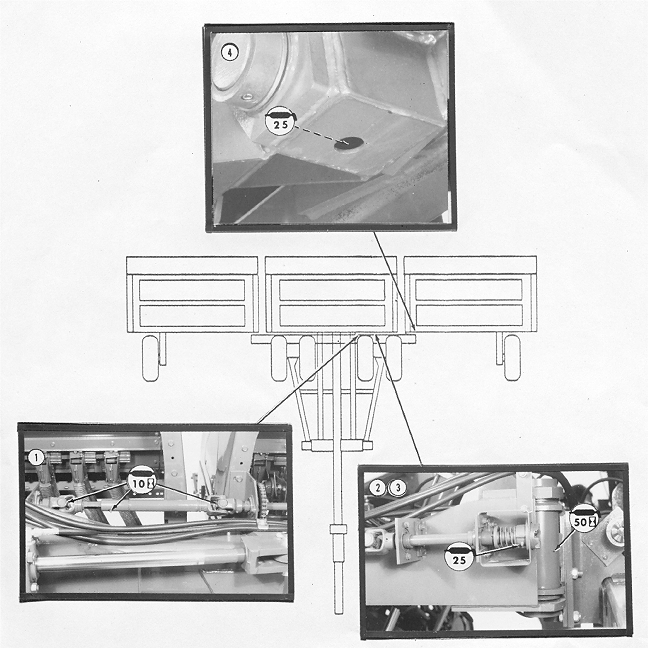

1.
Lubricate U-joint drive shaft in two places, and sliding joint fitting in one place. (30 ft and 35 ft)
2. Lubricate center box drive shaft. (30 ft and 35 ft) 3. Lubricate swing arm pivots. |
4. Lubricate box pivots. NOTE: Back up machine slightly before greasing horizontal pivot pin. |
AG,OUO1018,74 -19-01APR99-3/3 |
