Securing Machine for Safe Servicing

IMPORTANT: 7.6 m (25 ft) Two unit machine must be lifted completely and then folded or damage can result to swing arms and cylinders.

7.6 m (25 ft) ONLY: Lift machine completely and fold.

9.1 m (30 ft) ONLY: Fold and lift machine.

10.7 m (35 ft): Fold and lift machine.

AG,OUO1018,79 -19-01APR99-1/2

causym CAUTION: Check latches. Latches must be engaged before servicing machine. Failure to engage latches can cause damage to machine and possible serious injury or death to you or others.

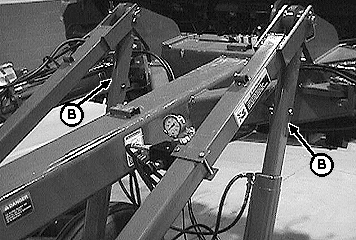

1. Fold machine before doing any adjusting or service work. Lift machine fully. Install front clevis (A) and two rear clevises (B) to lift cylinders.

2. Raise openers and close lockup valve to keep openers from falling.


A-Front Clevis
B-Rear Clevises

N42123BA
N50137

AG,OUO1018,79 -19-01APR99-2/2
