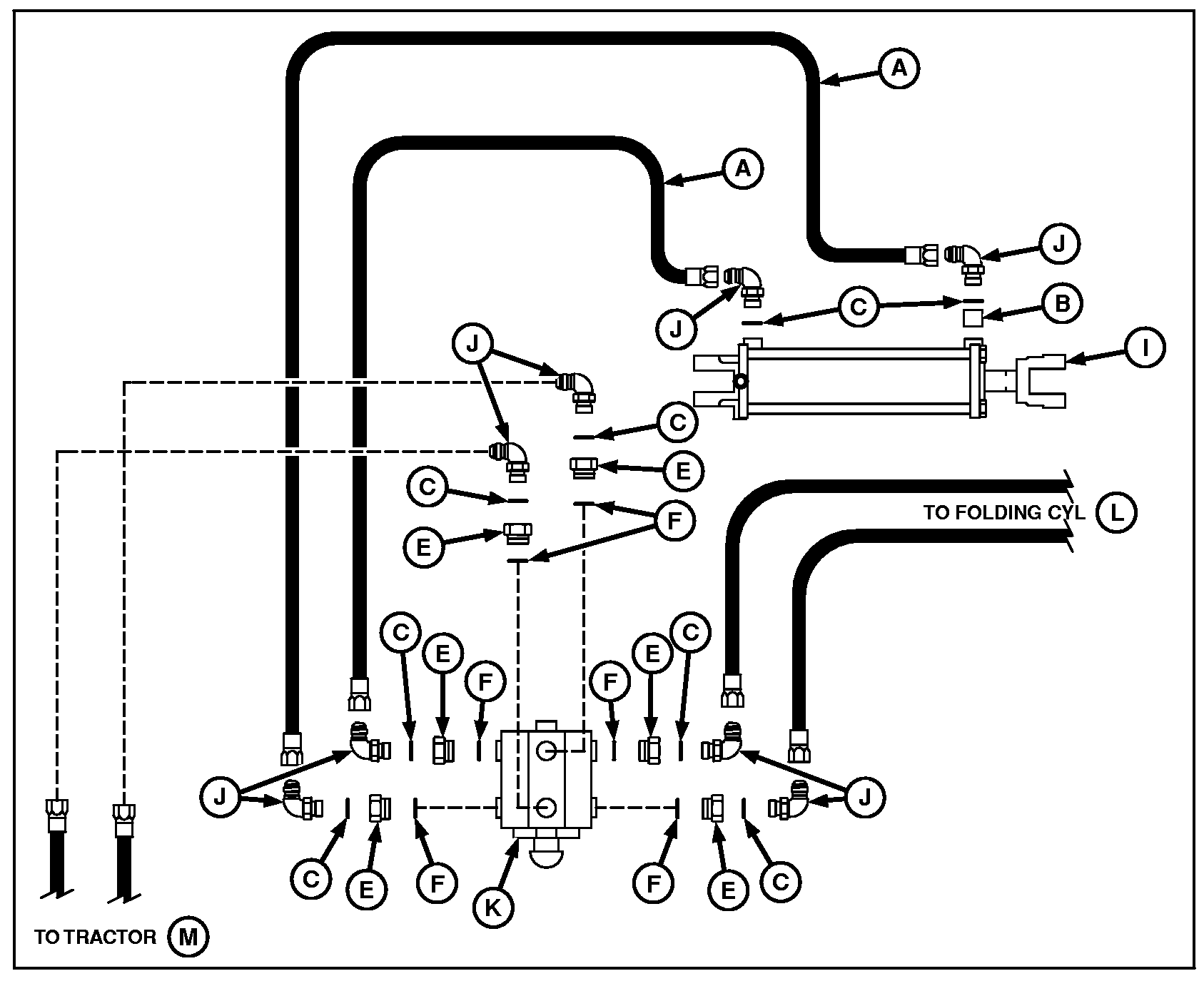

A-Hose 6 x 6477 mm (1/4 x 255 in.)
B-Orifice, 0.67 in.
C-O-Ring
D-Fitting
|
E-Adapter
F-O-Ring (1-in.)
G-Hose 6 x 1118 mm (1/4 x 44 in.)
|
H-Hose 6 x 1727 mm (1/4 x 68 in.)
I-Cylinder 76 x 203 mm (3 x 8 in.)
|
J-Elbow Fitting
K-Selector Valve
L-To Folding Cylinder
M-To Tractor
|
