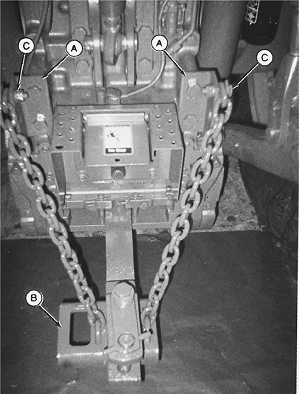

Attaching Drawbar Support on 7000 Series TractorsREQUIRED FOR 10.7 m (35 ft) ONLY 1. Attach angle brackets (A) to rear of tractor with four 19M7895-M20 x 50, 10.9 plated cap screws.2. (WITH HAMMERSTRAP) Install spacer and support channel (B) under drawbar as shown by removing two cap screws and using one 19M8026-M20 x 170, 10.9 and one 19M7619-M20 x 110, 10.9 cap screw. (WITHOUT HAMMERSTRAP) Use existing hardware. 3. Attach chain to the outside of the angle brackets (A) with 2-1/4 in. cap screws (C), square washers, lock washers, and nuts. 4. Attach each chain to the support channel (B) with one U-bolt and 5/8 in. lock washers and nuts; remove links if necessary.
|
|
NXN,750,V3A -19-03OCT94-1/1 |
