Using Half Speed Drive Attachment

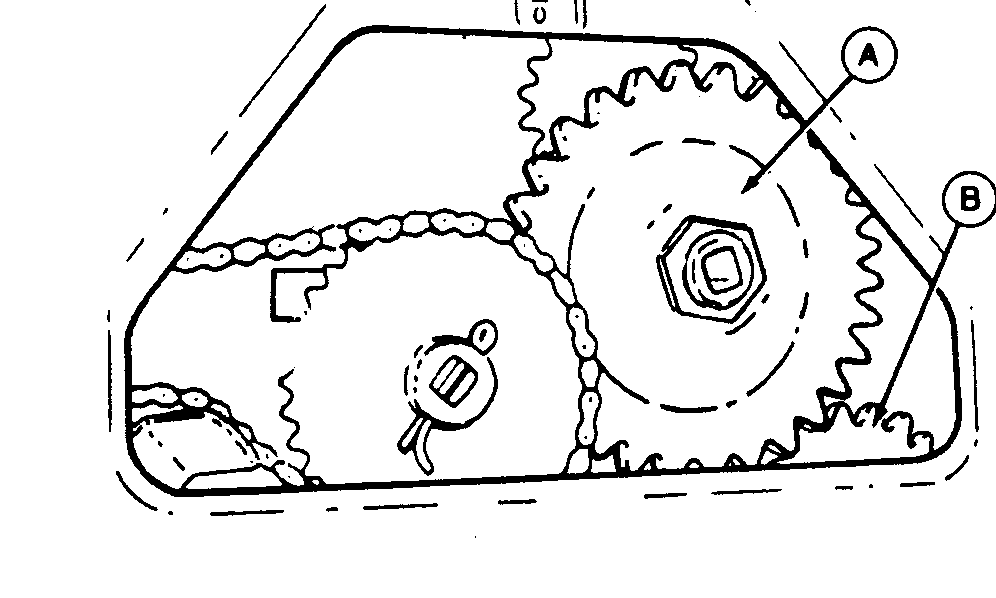

IMPORTANT: The 35-tooth gear (A) MUST BE installed on the feed shaft as shown or machine damage can result.

HALF-SPEED (Attachment), a 35-tooth gear and 13-tooth gear is available to replace 28 and 20-tooth gears in the end panel. The 35-tooth (A) and 13-tooth (B) gears will produce feed rates one-half the values on the fluted-feed charts in this section.

A-35-Tooth Gear
B-13-Tooth Gear
