Adjust Metering Valves-Tractors With Mechanical SCV (Selective Control Valve)
NOTE:
Tractor hydraulic oil flow must be at least 45 L/min (12 gpm) for proper operation of the machine.
NOTE:
For non John Deere tractors, see dealer for hook-up.
| Selective Control Valve |
Valve (A) Setting |
Detent Position |
| I Openers |
Fast (Hare) |
Continuous (D) |
| II Frame Lift |
Fast (Hare) |
No Detent (C) |
| III Fold |
Start in middle
Adjust for fold rate |
No Detent (C) |

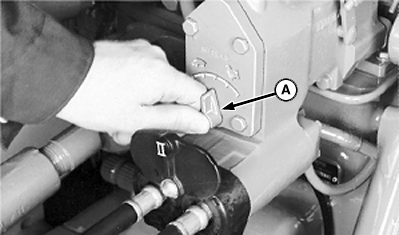

A-Metering Valves
B-Lock Position
C-No Detent Position
D-Continuous Detent Position
|
With Mechanical SCV Controls
With Mechanical SCV Controls
SCV Detent Selectors
|
