Replacing Front and Rear Warning Light Bulbs

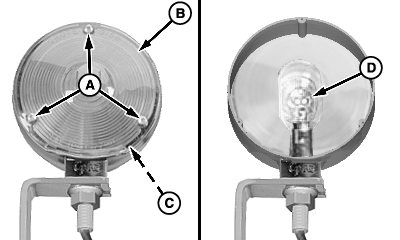

1. Remove screws (A).

2. Remove lens (B) and gasket (C).

3. Replace bulb (D) and reinstall lens and gasket. (See BULB PART NUMBERS in this section for proper replacement.)


A-Screws
B-Lens
C-Gasket
D-Bulb

N71822

AG,OUO1011,1184 -19-16MAR06-1/1
