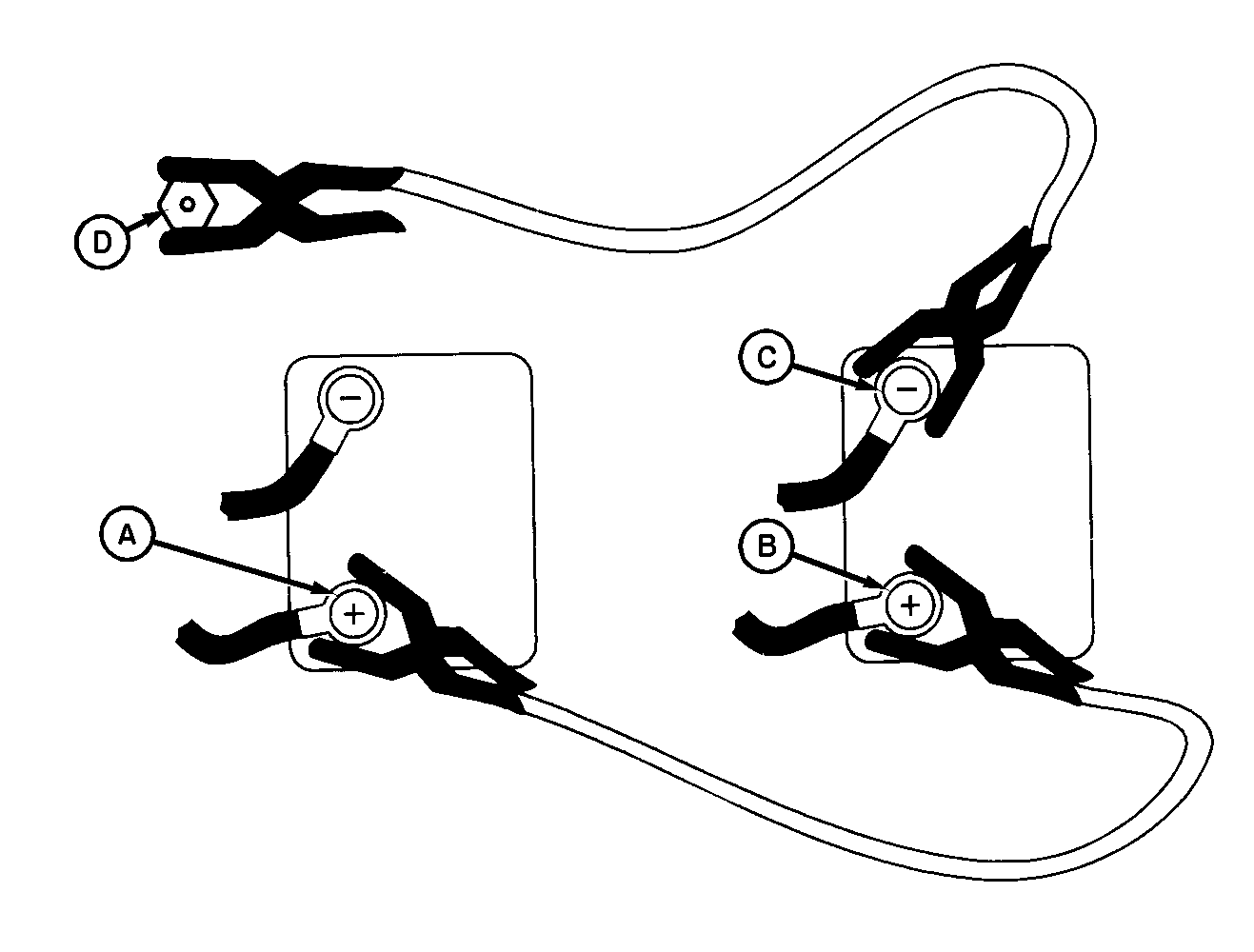

A-Positive Post of Discharged Battery

B-Positive Post of Booster Battery

C-Negative Post of Booster Battery

D-Engine Block of Stalled Machine

WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer and reproductive harm. Wash hands after handling.

CAUTION: Gas given off by batteries is explosive. Keep sparks and flames away from battery. Make last connection and first disconnection at a point away from battery.

IMPORTANT: Always connect starter cable to positive (+) terminal of battery and battery ground cable to negative (-) terminal of battery. Reversed polarity in battery or alternator can result in permanent damage to electrical system.

When jump starting, always remember the following:

• Use batteries of same voltage.

• Be sure both negative posts are grounded.
• Check fluid for freezing.
• Be sure machine is not touching another vehicle.
• Ignitions should be off, accessories off, gears in "PARK" or "NEUTRAL", and brakes engaged.
• Attach clamps in order indicated and remove in exact opposite order.

2. Connect second cable (negative) (-) to negative post of booster battery (C).

3. Connect the other end of the negative (-) cable to the engine block of the stalled machine (D), away from the battery. Stand clear.

4. Start machine and remove cables in reverse order of connection.

AG,OUO1011,1223 -19-28MAR06-1/1
