Remove Doffer Column

causym CAUTION: Units are heavy. If a unit falls, serious injury or death to you or others can occur. Lower unit safety stops over cylinder rods before working under units.

1. Remove cap screws (A).


A-Cap Screws

N51100
N92336D1

AG,OUO1011,1233 -19-21MAR06-1/4

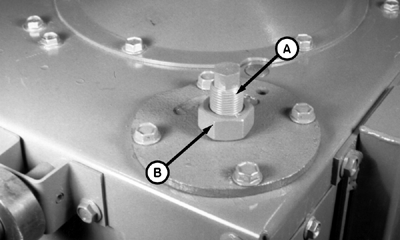

2. Loosen nut (B).

3. Turn adjusting screw (A) counterclockwise until adjusting screw is fully raised off stub shaft.


A-Adjusting Screw
B-Nut

N42178RS

AG,OUO1011,1233 -19-21MAR06-2/4

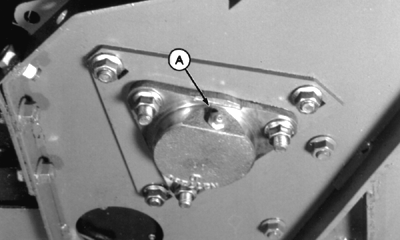

4. Remove grease fitting (A) from lower bearing housing.


A-Grease Fitting

N42169FY

AG,OUO1011,1233 -19-21MAR06-3/4

IMPORTANT: Do not loosen adjusting plate cap screws (B) or complete realignment will be required.

5. Remove three nuts and flange head cap crews (A).

6. Remove lower bearing housing.

7. Remove doffer column.


A-Flange Head Cap Screws
B-Adjusting Plate Cap Screws

N92336E2
N42169JA

Underside View

AG,OUO1011,1233 -19-21MAR06-4/4
