Adjusting Moistener Column Position

IMPORTANT: To ensure proper adjustment, moistener column door must be closed and latched. Remove inspection door in front of moistener column being adjusted to see pad/spindle relationship.

1. Rotate drum so spindles are just exiting the moistener pads.

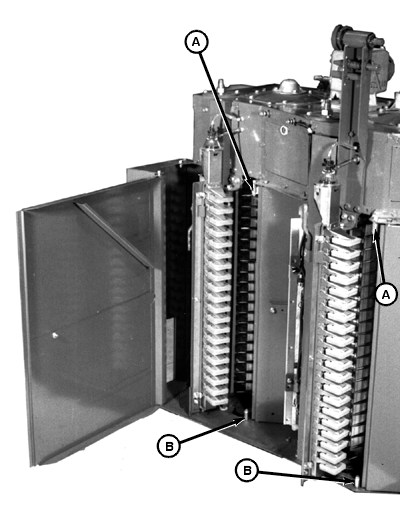

2. Loosen door latch stop cap screws at top (A) and bottom (B).


A-Door Latch Stop Cap Screws, Top
B-Door Latch Stop Cap Screws, Bottom

N42176QL

AG,OUO1011,1715 -19-29MAR06-1/2

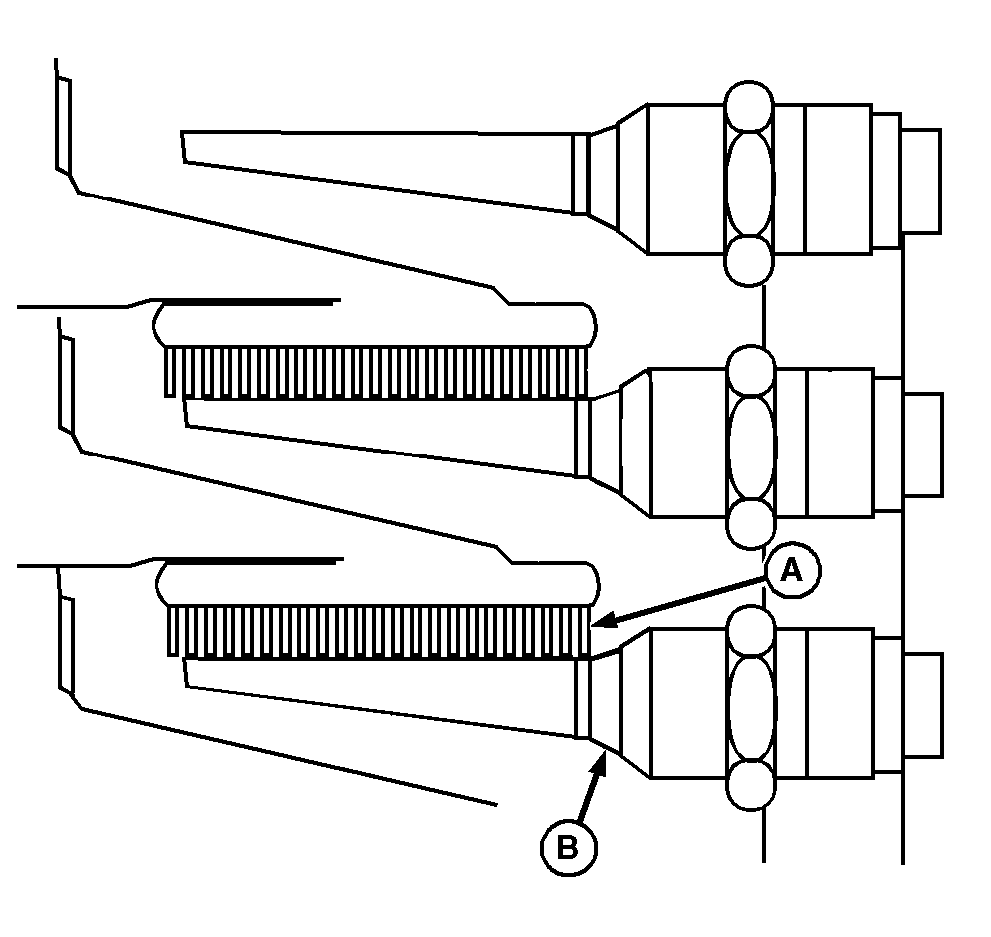

3. Move door in or out until first fin (A) of each pad just touches front edge of its respective spindle dust collar (B).

4. Tighten door latch stop cap screws.

5. Adjust moistener column height. (See ADJUSTING MOISTENER COLUMN HEIGHT in this section.)


A-Moistener Pad Fin
B-Spindle Dust Collar

N66184

AG,OUO1011,1715 -19-29MAR06-2/2
