Fire Extinguishers (Domestic Machines)

One rechargeable 10 lb. ABC type dry chemical fire extinguisher (A) and one rechargeable 2.5 gal water type fire extinguisher (B) are installed on your machine.

• Water type fire extinguisher is for cotton lint and trash fires.
• ABC chemical type fire extinguisher is for grease, oil, electrical, and chemical fires. This extinguisher is preferred when extinguishing an engine fire through the side panel portholes.
• Always direct extinguisher at the base of the fire no matter which type of extinguisher is used.

Read the fire extinguisher labels and inform everyone necessary of their exact location on the machine and how to use and maintain them. Recharge after every use.

Both fire extinguishers should be inspected at least every 10 hours or daily. Keep a record of inspections on the tag attached to the extinguisher.

Fire extinguishers are available from your John Deere dealer.

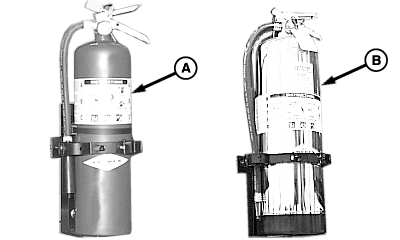

A-10 lb. ABC Type Dry Chemical Fire Extinguisher
B-2.5 gal Water Type Fire Extinguisher

NXLN,9976,C11XN -19-03OCT97-1/1
