Diagnostic Trouble Codes at Start-Up

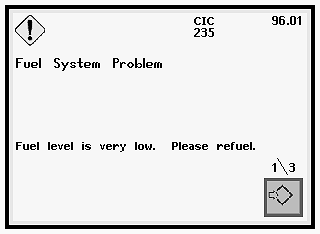

If a problem with the machine is detected diagnostic trouble codes (DTC) appear at start-up. Display shows all DTC's one at a time.

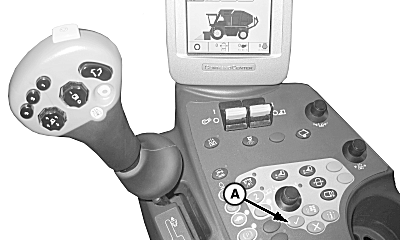

Press confirm button (A) once issue has been resolved. If issue cannot be resolved contact your John Deere dealer.

A-Confirm Button

OUO1078,0000002 -19-17MAR09-1/1
