Home Page Screens
Screen 1 displays:
-
Water Pressure
-
Fan Speed
-
Engine Rpm
-
Harvest Mode Icon
-
Wrap Count
NOTE:
The order of items on page 2 can be displayed in any order. Use selection dial to highlight the icon and push confirm button to select the item that you want in that box.
Screen 2 displays:
-
Module Size
-
Module Speed (Right Column Default)
-
Beater Speed (Left Column Default)
-
Feed Conveyor Speed (Right Column Default)
-
Engine Rpm
-
Fan Speed
-
Meter Speed (Left Column Default)
-
Rockshaft Pressure (Left Column Default)
-
Row Units Rpm (Right Column Default)
-
Wrap Count
|

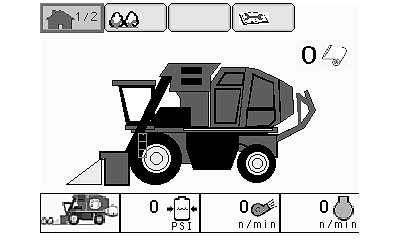

Screen 1 of 2

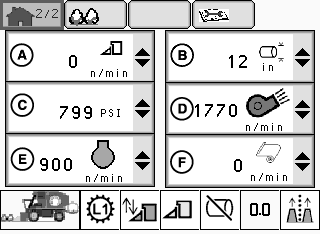

Screen 2 of 2
|
