Engine and Fan Hours

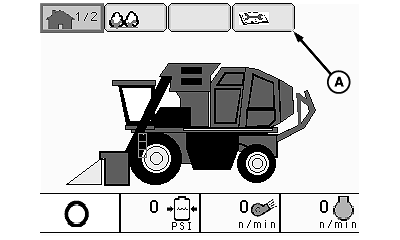

1. Highlight icon (A) using selection dial (C) and push confirm button (B).


A-Icon
B-Confirm Button
C-Selection Dial

N82006
N81007

OUO1078,0000009 -19-21OCT08-1/4

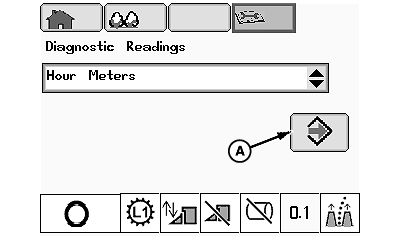

2. Highlight icon (A) and push confirm button.


A-Icon

N80921

OUO1078,0000009 -19-21OCT08-2/4

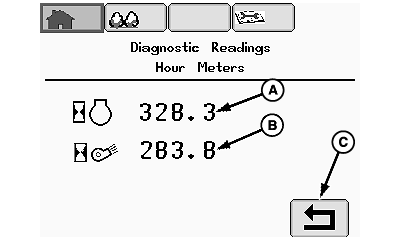

3. Engine hours (A) and fan hours (B) are displayed. Highlight return icon (C) and push confirm button.


A-Engine Hours
B-Fan Hours
C-Return Icon

N80913

OUO1078,0000009 -19-21OCT08-3/4

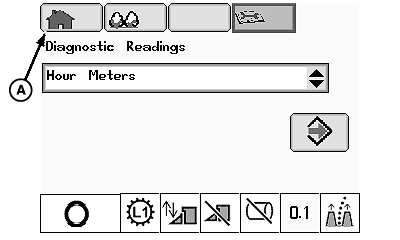

4. Highlight home icon (A) and push confirm button to return to home page.


A-Home Icon

N81008

OUO1078,0000009 -19-21OCT08-4/4
