Tether Mode

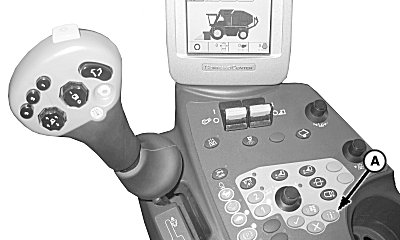

1. Push information button (A).


A-Information Button

N80832

OUO1078,000000B -19-21OCT08-1/7

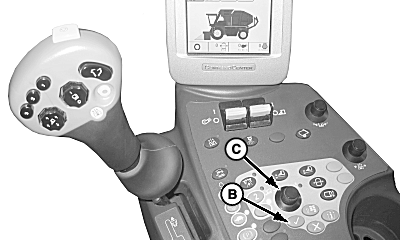

2. Highlight daily service icon (A) using selection dial (C) and press confirm button (B).


A-Daily Service Icon
B-Confirm Button
C-Selection Dial

N81011
N81007

OUO1078,000000B -19-21OCT08-2/7

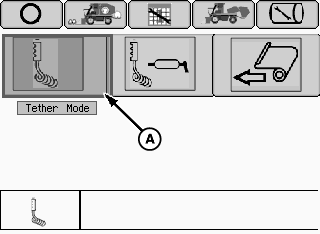

3. Highlight tether mode icon (A) using selection dial and press confirm button.


A-Tether Mode Icon

N80422

OUO1078,000000B -19-21OCT08-3/7

causym CAUTION: Verify park brake switch is engaged. The unexpected movement of the machine can cause serious injury or death to you or others. If the inspection bypass system does not operate exactly as described below, see your John Deere dealer.

Serious injury or death can result if you or others become entangled or are drawn into moving parts of unit. Keep away from all moving parts to prevent injury or death. Always keep inspection bypass cord away from moving parts on row units.

NEVER operate the inspection bypass while standing on top of row units or you or others can fall and become entangled in moving parts of unit causing serious injury or death to you or others.

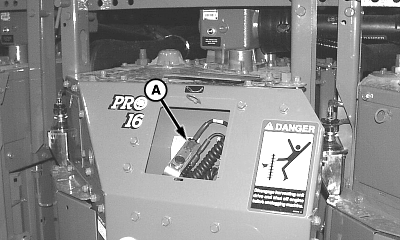

4. Remove tether switch (A) from storage position in Unit No. 3. Stand clear of units. Keep thumb free of tether switch.


A-Tether Switch

TS675
N57061

OUO1078,000000B -19-21OCT08-4/7

causym CAUTION: If you or others would fall or be pulled into an operating row unit, serious injury or death can result. Stay away from moving parts on an operating row unit. ALWAYS keep inspection bypass cord away from moving parts on row units.

NOTE: Due to seat safety interlock, seat must be empty for tether switch to operate.

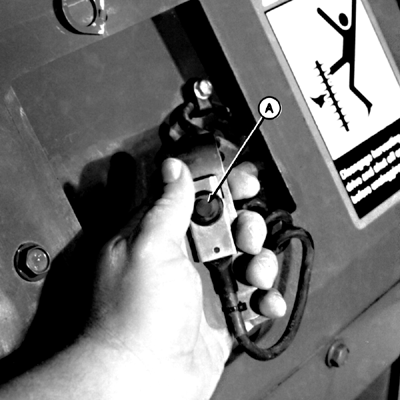

5. Establish solid footing and clearance from moving parts, then depress tether switch button (A). Slow unit rotation will begin immediately and continue until the switch is released.

6. Release tether switch button. Units should stop.


A-Tether Switch Button

TS675
N42166JJ

OUO1078,000000B -19-21OCT08-5/7

7. Place tether switch into Unit No. 3 for storage. Close unit plate.


A-Tether Switch

N57061

OUO1078,000000B -19-21OCT08-6/7

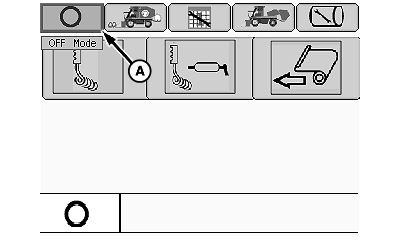

8. Highlight off mode icon (A) and push confirm button.

9. Return to home page.


A-Off Mode Icon

N82007

OUO1078,000000B -19-21OCT08-7/7
