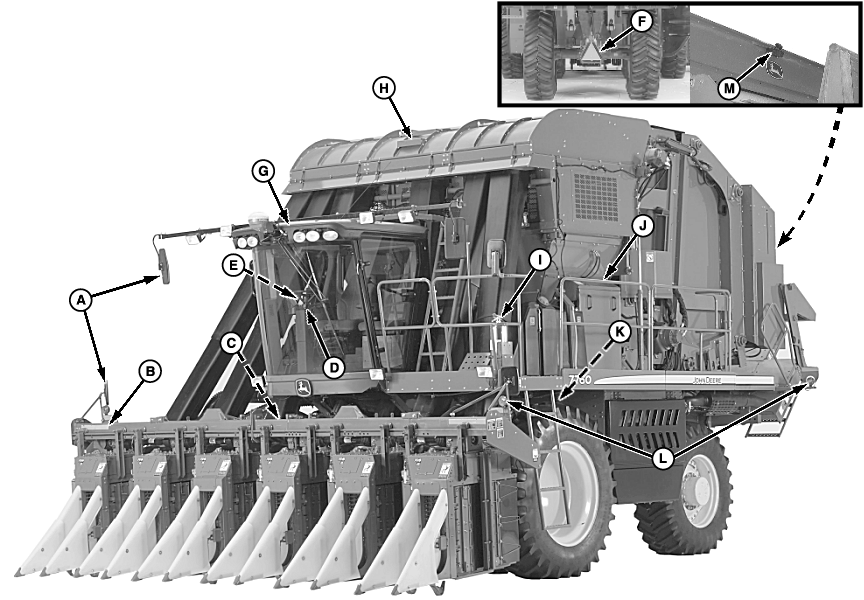

A-REARVIEW MIRRORS-For view of surroundings.
B-FRONT AND REAR REFLECTORS-Alerts traffic of your presence on roadway.
C-UNIT LIFT CYLINDER LOCK UP-Prevents units from moving down.
D-HORN-To alert others working in area.
E-PARK BRAKE SWITCH
F-SMV EMBLEM-Alerts following traffic of your presence on roadway.
|
G-CAB WITH SEAT BELT AND OPERATOR PRESENCE SYSTEM-For operator comfort and safety. System will sense presence of operator in seat whenever row units are engaged and will stop machine if operator leaves seat for more than 5 seconds.
H-DIVOTTED STEPS AND PLATFORM-Helps prevent slipping when on platform or ladder, also reduces dirt and mud buildup.
|
I-FIRE EXTINGUISHERS-One 4.5 kg (10 lb) ABC type dry chemical for use on electrical fire; One 9.5 L (2.5 gal) water type for use on non-electrical fire.
J-HAND RAILS-Gives support when climbing on machine, walking on platform, or walking on accumulator.
K-STARTER SOLENOID SHIELDING-For engine bypass start protection.
|
L-FRONT AND REAR HAZARD LIGHTS-Alerts oncoming and following traffic of your presence on roadway. Adjust rear warning lights to agree with machine transport width.
M-BACKUP ALARM-Alerts others in area of machine backing up.
|
