Stopping Engine

1. Place multifunction control handle (A) in neutral. Engage park brake button.

IMPORTANT: Cooling of turbocharger and certain engine parts is provided by engine oil. Stopping a hot engine abruptly can cause damage to these parts by overheating.

2. Move fan switch (B) and units switch (C) to off position. Push low engine speed button (D) and allow engine to operate at idle for two minutes.

3. Lower units.

4. Turn off all accessory switches.

5. Turn ignition switch off and remove key.

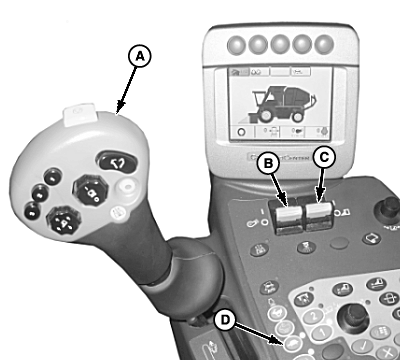

N80828


A-Multifunction Control Handle
B-Fan Switch
C-Units Switch
D-Low Engine Speed Button (Idle)

OUO1078,000002D -19-18MAR09-1/1
