Driving Machine

All ground speeds are with engine at maximum throttle and multifunction control handle fully forward (forward speeds) or fully rearward (reverse speeds).

causym CAUTION: Machine is heavy. If machine should move suddenly forward or backward, serious injury or death can result to you or others. Be sure that all people and objects are safely away from the machine before driving.

1. Set brake latch in desired position (field or transport). (See TRAVEL BRAKE PEDALS in Operator's Station section.)

2. Push park brake button (A). Indicator light will transition from solid to flashing, indicating park brake will release with multifunction control handle movement.

3. For highway travel push road/field mode button (B). Indicator will light and machine will default to range 1. For field operation indicator light will not be lit.

N80829


A-Park Brake Button
B-Road/Field Mode Button
C-Range 2 Button
D-Range 1 Button

Travel Speeds
Mode Km/h (mph)
Picking (Range 1 Field Mode) (D) 0-6.8 (0-4.2)
Scrapping (Range 2 Field Mode) (C) 0-8.1 (0-5.0)
Field Transport (Range 1 Road Mode) (D)a 0-14.5 (0-9.0)
Road Transport (Range 2 Road Mode) (C)a 0-27.4 (0-17.0)
aWith Road/Field Mode Button activated.



OUO1078,000002F -19-18MAR09-1/2

NOTE: To ensure full output from air system, always place throttle at maximum throttle position when picking cotton.

4. Push desired engine speed button (A-C).

  • Low Engine Speed-900 rpm
  • Medium Engine Speed-1750 rpm
  • High Engine Speed-2200 rpm

5. Move multifunction control handle forward for forward travel or rearward for reverse travel.

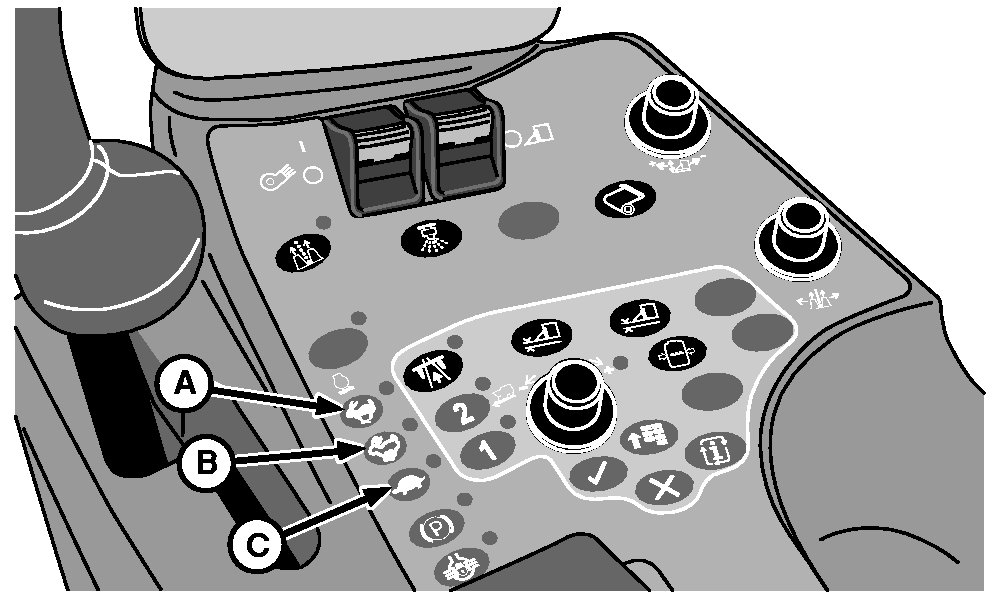

N75744


A-High Engine Speed
B-Medium Engine Speed
C-Low Engine Speed (Idle)

OUO1078,000002F -19-18MAR09-2/2
