Machine Dimensions

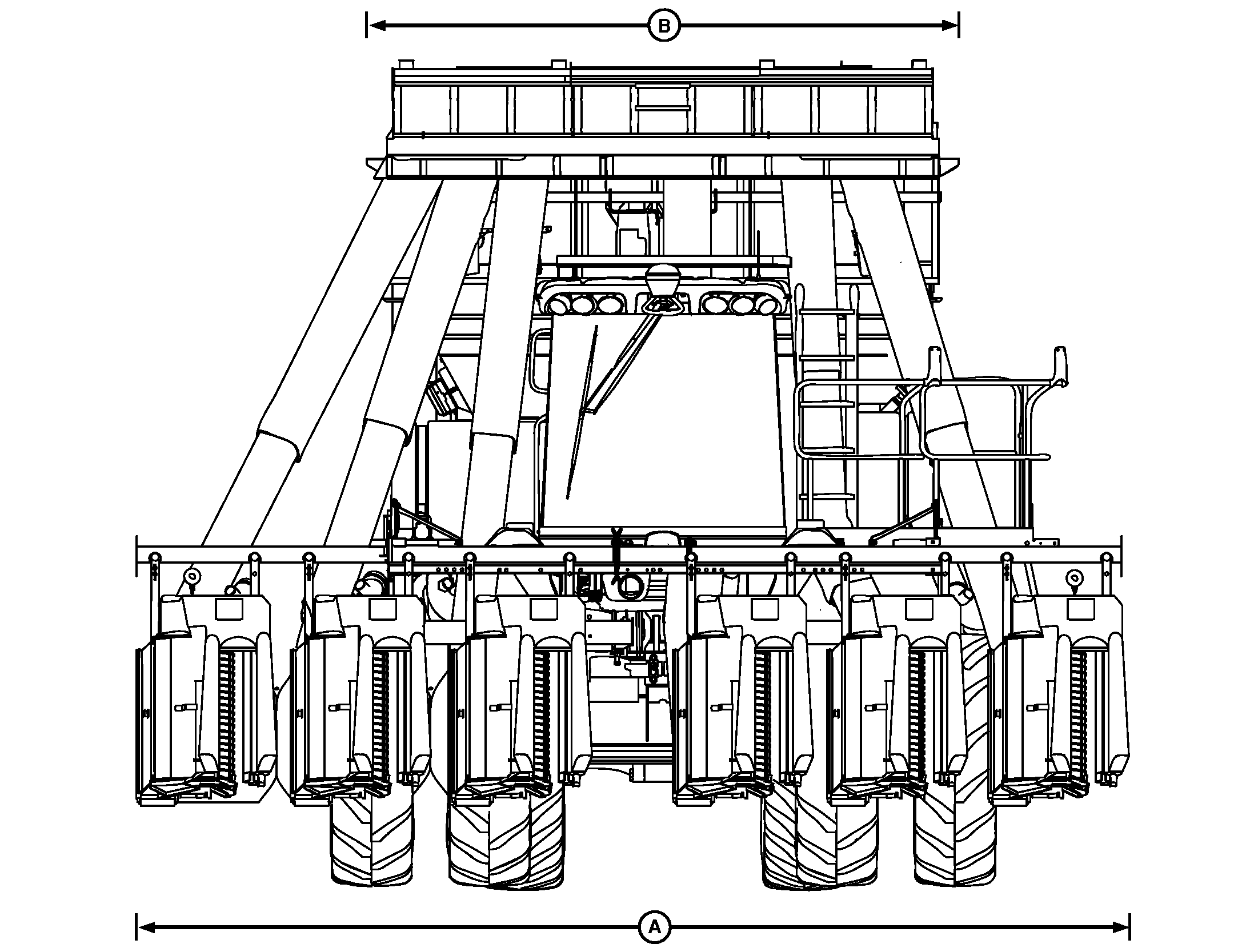

Front View (Harvest Mode)
| | A-5537 mm (218 in.)
| B-3658 mm (144 in.)
|
|
|
|
OUO1078,000003E -19-20APR09-1/3
|

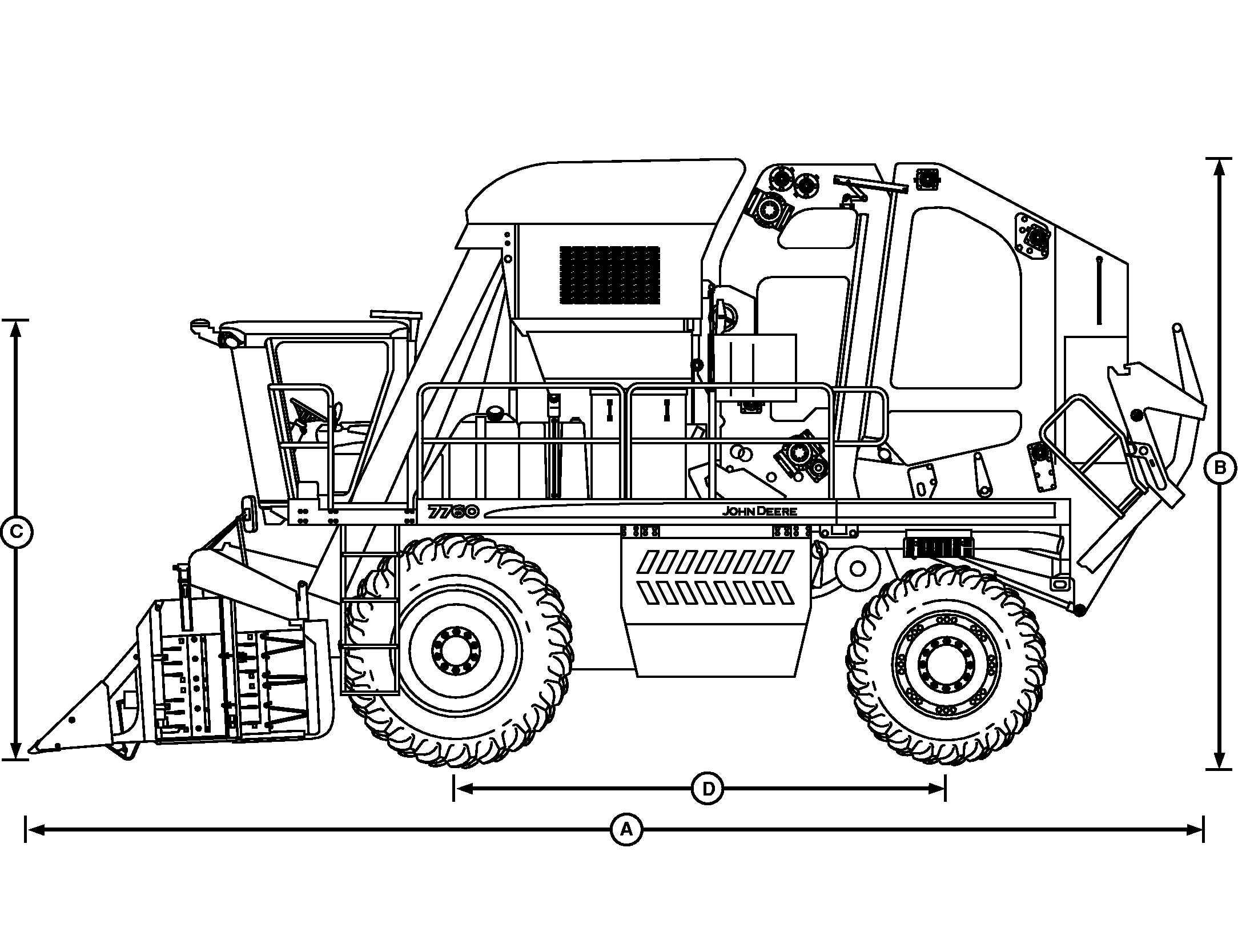

Side View (Harvest Mode)
A-10,135 mm (399 in.)
|
B-5245 mm (206.5 in.)
|
C-3810 mm (150 in.)
|
D-4318 mm (170 in.)
|
|
|
OUO1078,000003E -19-20APR09-2/3
|

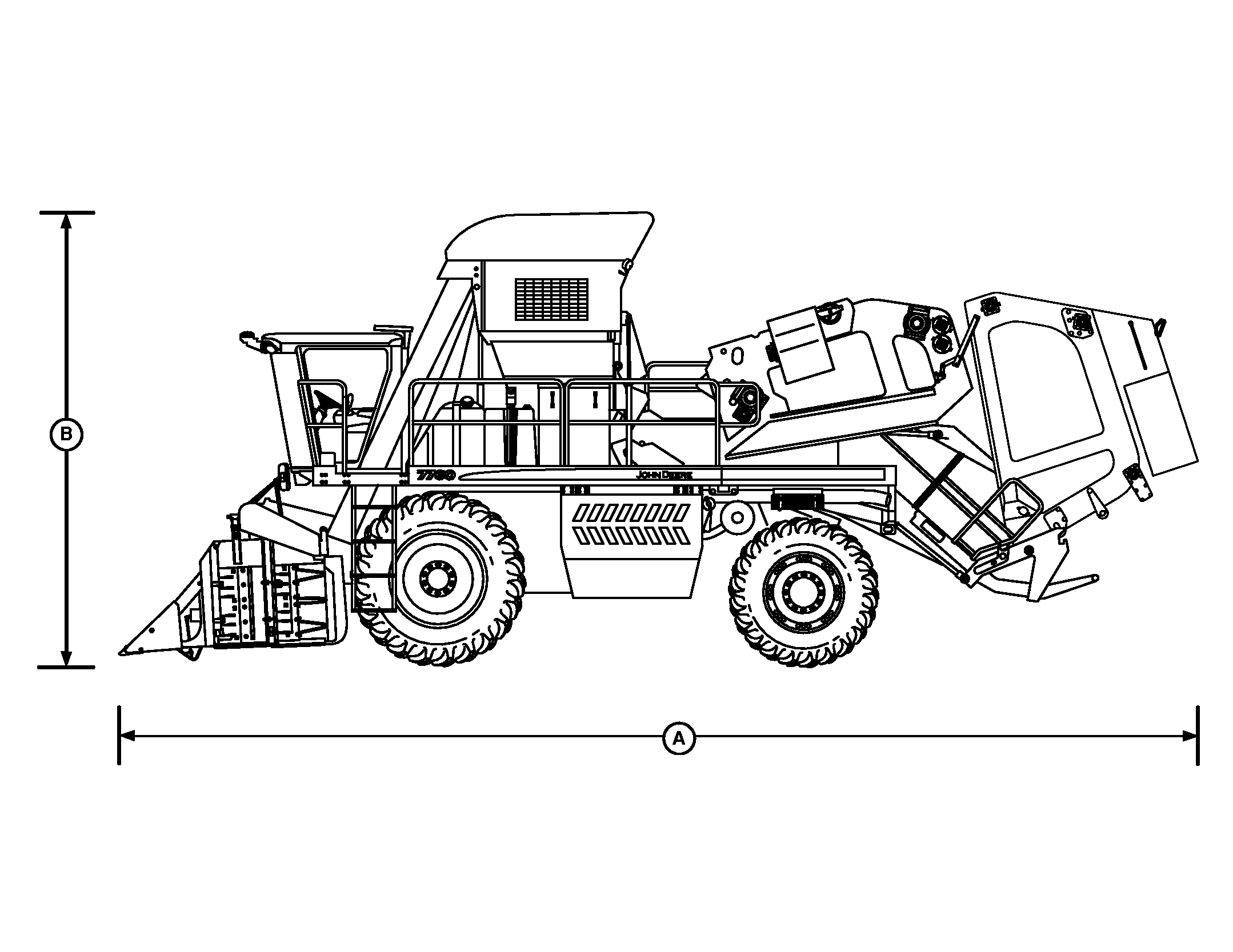

Side View (Transport Mode)
| | A-11,938 mm (470 in.)
| B-4356 mm (171.5 in.)
|
|
|
|
OUO1078,000003E -19-20APR09-3/3
|
|
