Using Moistener System Flush

To ensure lowest solution usage when spindle buildup is observed, activate moistener flush system to clean spindles in the following order:

NOTE: Some conditions (green sappy plants) will require more frequent flushing.

DO NOT operate flush system in row while picking or plugging may result.

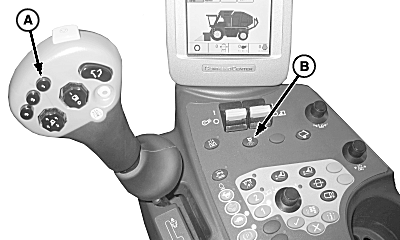

NOTE: Programmable button #1 (A) can also be used to operate the moistener system flush.

2. Depress moistener system flush switch (B):

a. At one end of field for 4-5 seconds (normal-tough staining conditions).

b. At both ends of field for 4-5 seconds (extreme staining conditions).

3. When flushing at a turn row, depress switch as row units are just starting to raise. Release switch halfway through turn (approximately 4-5 seconds). This allows excess solution to be removed before re-entering the row.

A-Programmable Button #1
B-Moistener System Flush Switch

OUO1078,0000044 -19-28MAY08-1/1
