Main Frame

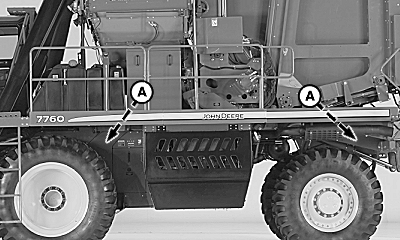

1. Inspect main frame area (A) for cotton buildup or damage. Clean or repair as necessary.

NOTE: Module builder latches (A) are difficult to release if cotton builds up on main frame (C).

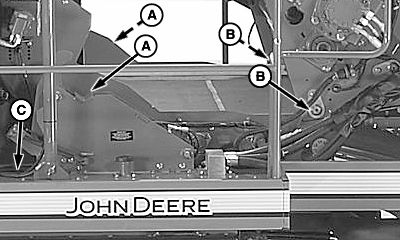

2. Check module builder frame latches (A) and module builder frame pivots (B) for cotton buildup or wear. Clean or repair as necessary.


A-Module Builder Frame Latches
B-Module Builder Frame Pivots
C-Main Frame

N75893
N80473

OUO1078,0000046 -19-02JUN08-1/1
