Filling Lubrication Reservoir

1. Shut off engine.

2. Insert inlet tube (A) of transfer pump in a drum of John Deere Spindle Lubricant.


A-Inlet Tube

N58985

OUO1078,000004A -19-06JUN08-1/2

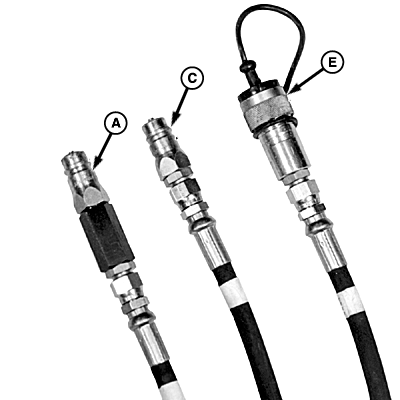

3. Attach return hydraulic line (A) with check valve to power drive outlet attachment ISO return line coupler (D).

4. Attach pressure hydraulic line (C) to power drive outlet attachment ISO pressure line coupler (B).

5. Attach grease hydraulic line (E) to power drive outlet attachment ISO grease line coupler (F).

6. Pump until the reservoir is full. Shut off engine.

7. Disconnect hydraulic couplers and fill line.

8. Recap all couplers on the lubrication transfer pump.


A-Return Hydraulic Line
B-Auxiliary System Pressure Coupler
C-Pressure Hydraulic Line
D-Auxiliary System Return Coupler
E-Grease Hydraulic Line
F-Grease Line Coupler

N58986
N80603
