Adjusting Lower Feeder Belt Tension And Check Tracking

IMPORTANT: Module Builder should be in lowered transport position before attempting belt maintenance procedures.

OUO1078,000005D -19-25MAR09-1/3

Check lower feeder belt (A) for proper tension and tracking.

A-Lower Feeder Belt

OUO1078,000005D -19-25MAR09-2/3

NOTE: Check tracking at rear roller. Tracking can be checked by inspecting the position of the edge of the belt in relation to the edge of the rear roller on each side. A properly tracked belt will be centered on the rear roller. If belt appears to be tracking to one side, tighten tensioner slightly on that side or loosen tensioner slightly on the opposite side. Feeder belt will track towards the slack side.

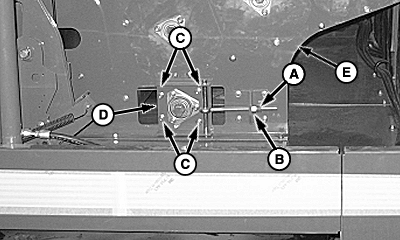

2. Loosen four retaining cap screws (C).

3. Mark position of adjusting plate (D) relative to the feeder side panel (E) on each side before making any adjustments.

4. Adjust lower feeder belt using adjusting nut (B) to maintain proper tension.

5. Tighten four retaining cap screws (C) and jam nut (A).

A-Jam Nut
B-Adjusting Nut
C-Retaining Cap Screws
D-Adjusting Plate
E-Feeder Side Panel

OUO1078,000005D -19-25MAR09-3/3
