Practice Safe Service and Maintenance

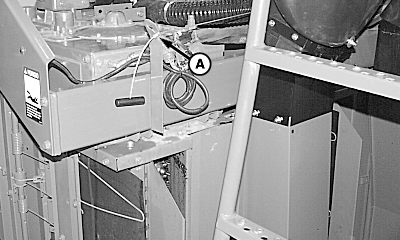

A-Safety Stop Cables

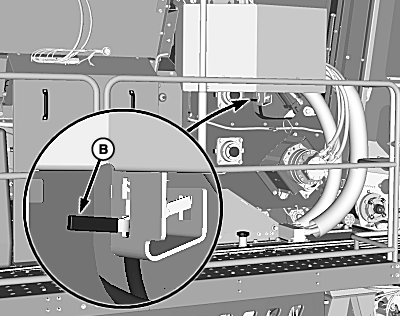

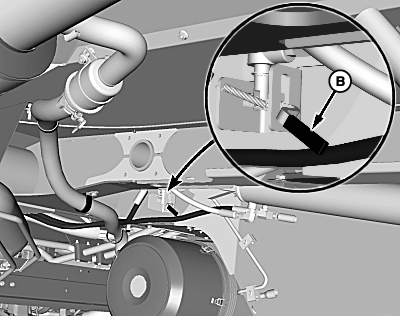

B-Hydraulic Valve Locks

Unauthorized modifications to the machine may impair the function and/or safety of the machine. Unauthorized modifications may also affect machine life and void warranties.

Before working under units, fully extend unit lift cylinders and release safety stops cables (A) on both sides of machine. Verify unit lift arm cylinder stops are in place on both sides.

Before working on or around module builder place rear gate in handler cradle and engage both hydraulic valve locks (B).

Before loading wrap make sure no one is on or near accumulator or module builder.

Before operating module builder tether make sure no one is on or near accumulator, module builder or handler.

DO NOT lubricate or adjust machine when it is in motion.

DO NOT check the water level in a hot radiator by removing cap. Check surge tank.

Shut off engine and remove key when working on the machine unless specifically instructed to leave engine running.

Replace all guards and shields removed for servicing.

DO NOT attempt to remove an obstruction unless:

OUO1078,0000064 -19-17APR09-1/2

• Units are disengaged, fully lowered or row unit lift arm cylinder stops are in place
• Hydro lever is in neutral
• Park brake switch is engaged
• Ignition is off
• Switch key is removed

When instructional seat is in use operator and observer should exit operator station during all service work.

OUO1078,0000064 -19-17APR09-2/2
