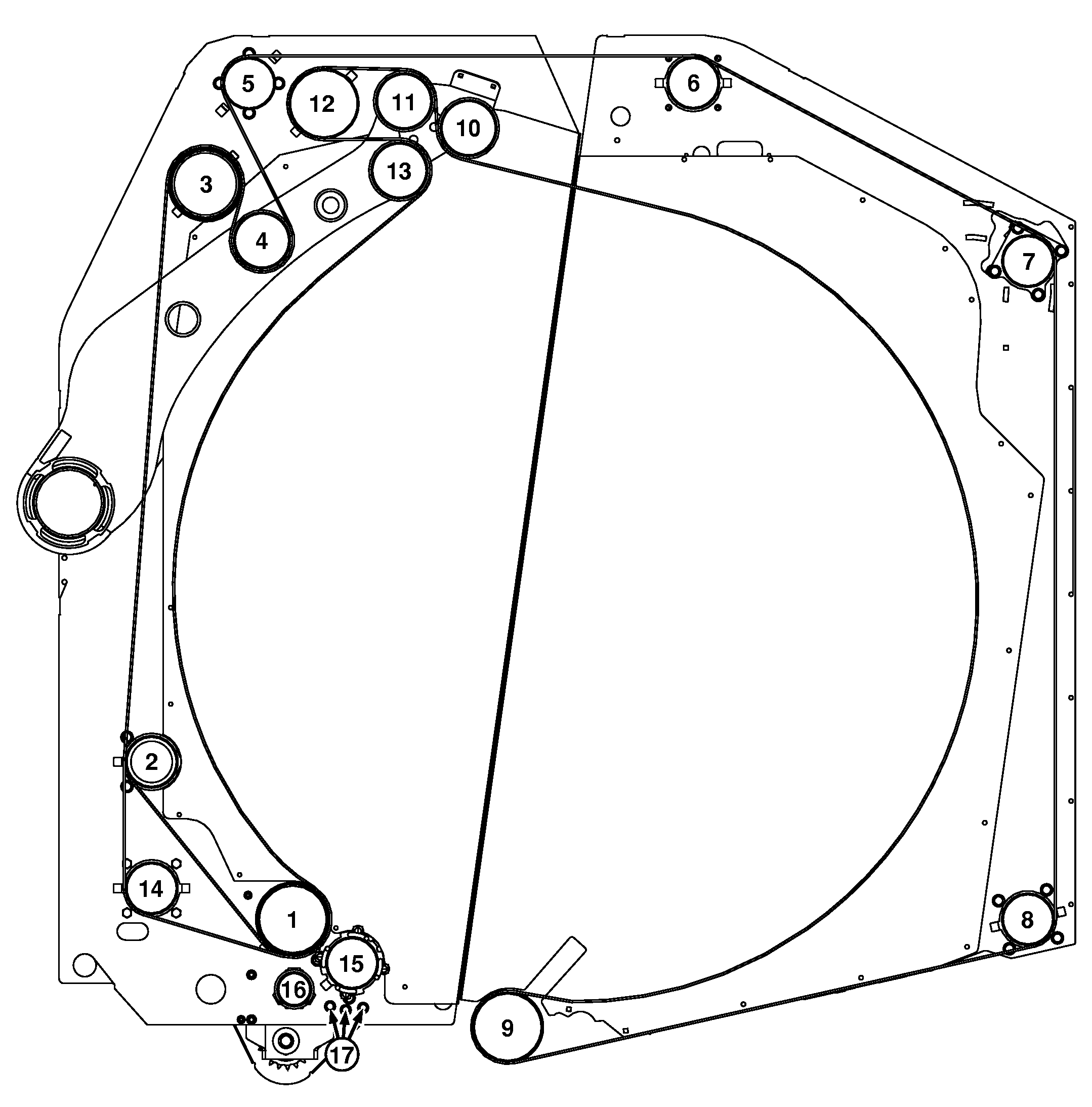

1-Lower Drive Roll
2-Upper Separation Roll
3-Upper Drive Roll
4-Take-Up Roll
5-Upper Frame Idler Roll, 152 mm (6 in.)
|
6-Upper Front Gate Roll
7-Upper Rear Gate Roll
8-Lower Rear Gate Roll
9-Lower Front Gate Roll
10-Rear Pinch Roll
|
11-Upper Tip Roll
12-Upper Frame Idler Roll, 230 mm (8 in.)
13-Front Pinch Roll
|
14-Lower Separation Roll
15-Starter Roll
16-Laydown Roll
17-Starter Roll Guard Rolls
|
