Adjust Individual Belt Tracking

NOTE: Perform the following procedure if a belt is not tracking properly.

causym CAUTION: Do not stand directly in module builder during belt tracking. Always stand away from all moving parts and belts. Serious injury or death can occur to you or others. Always turn off machine before entering chamber.

1. Push information button (A).


A-Information Button

N80832

OUO1078,000020D -19-17APR09-1/9

IMPORTANT: Round Module Builder must be locked down to activate this service mode.

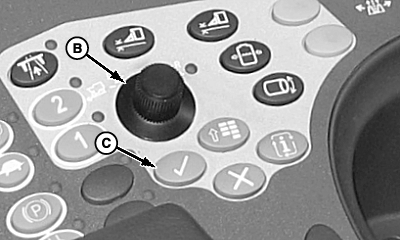

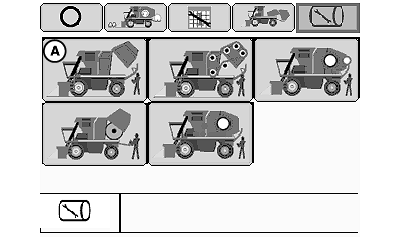

2. Rotate selection dial (B) to highlight RMB Service Mode icon (A).

Press confirm button (C).


A-RMB Service Mode
B-Selection Dial
C-Confirm Button

N82411
N82410

OUO1078,000020D -19-17APR09-2/9

3. Press D on tether and place gate in cradle.

N80427

OUO1078,000020D -19-17APR09-3/9

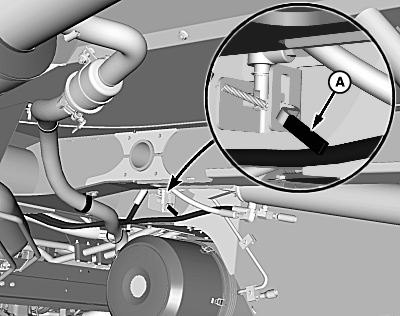

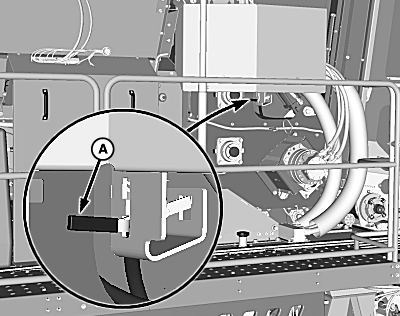

4. Engage hydraulic lock valves (A) for both gate and handler.

5. Return to RMB Service Mode screen home page.


A-Hydraulic Lock Valves

N84172

Handle Lock Valve

N84173

Gate Lock Valve

OUO1078,000020D -19-17APR09-4/9

IMPORTANT: Round Module Builder must be locked down to activate this service mode.

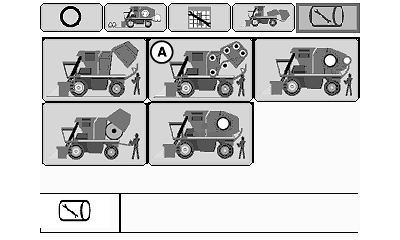

6. Rotate selection dial (B) to highlight RMB Service Mode icon (A).

Press confirm button (C).


A-RMB Service Mode
B-Selection Dial
C-Confirm Button

N82012
N82410

OUO1078,000020D -19-17APR09-5/9

7. Press A on tether to run module builder until lace on belt is approximately 450 mm (18 in.) behind rockshaft roller.

8. Press C on tether to raise rockshaft to relieve belt tension.

N80428

OUO1078,000020D -19-17APR09-6/9

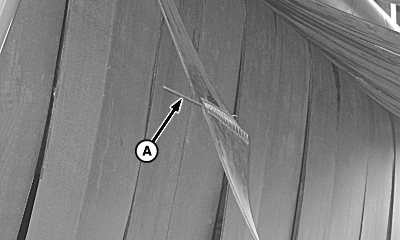

9. Remove place pin (A) on belt using pliers.

IMPORTANT: Verify belt is going to track correctly in place.

10. Flip back half of belt over and install place pin.


A-Place Pin

N82414

OUO1078,000020D -19-17APR09-7/9

11. Press D on tether to lower rockshaft and tighten belts.

12. Press A on tether to run module builder until lace appears in original position.

13. Press C on tether to raise rockshaft to relieve belt tension.

N80428

OUO1078,000020D -19-17APR09-8/9

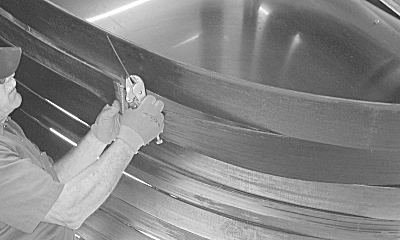

14. Remove place pin and flip back half of belt over. Belt has now been flipped 180°.

15. Disengage hydraulic lock valves.

16. Exit Service Belts Mode and enter RMB Service Mode.

17. Press C on tether to return module builder to closed position.

18. Place tether in storage position.

N82415

OUO1078,000020D -19-17APR09-9/9
