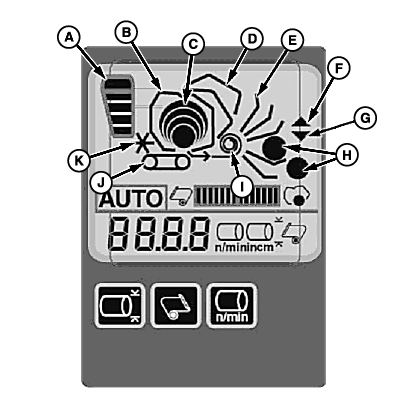

Round Module Builder Display

A-Accumulator Level
B-Round Module Builder
C-Round Module Status
D-Round Module Builder
E-Handler Position
F-Handler Switch Icons (Up)
G-Handler Switch Icons (Down)
H-Round Module on Handler Status
I-Wrap Status
J-Feeder Status
K-Metering Roll Status

OUO1078,0000212 -19-13MAR09-1/2

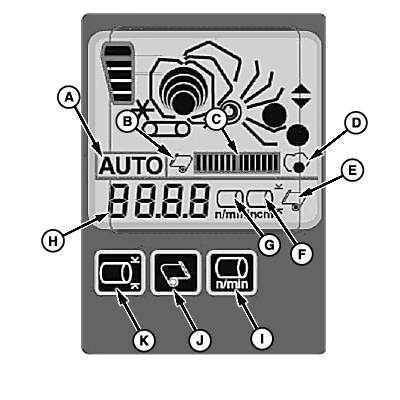

A-Auto Mode Indicator
B-Wrap Process Icon
C-Wrap and Eject Process Progress Bar
D-Eject Process Icon
E-Number of Wraps Remaining Icon
F-Round Module Size Icon
G-Round Module Builder Speed Icon
H-Digital Display
I-Round Module Builder Speed Switch
J-Wrap Remaining Switch
K-Round Module Size Switch

OUO1078,0000212 -19-13MAR09-2/2
