Every 6 Hours of Operation
1.
Check doffers, drums, inside of suction doors, and moistener columns. Clean as necessary.
|
|
|
|
OUO1078,000021D -19-06JAN09-1/5
|
|
2.

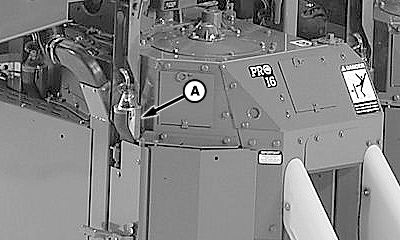

Check nozzles (A) for dirt. Clean as needed.
A-Nozzle
|
|
|
|
OUO1078,000021D -19-06JAN09-2/5
|
|
3.

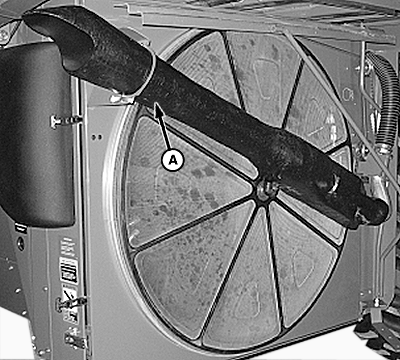

Inspect and clean trash expeller (A) on rotary screen.
A-Trash Expeller
|
|
|
|
OUO1078,000021D -19-06JAN09-3/5
|
|
4.

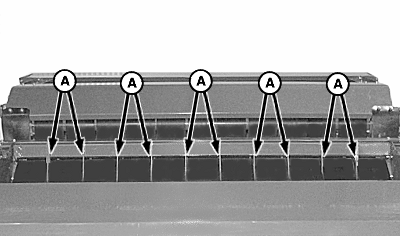

Clean and inspect all finger grates (A). Look for missing or damaged fingers.
A-Finger Grates
|
|
|
|
OUO1078,000021D -19-06JAN09-4/5
|
|
5.

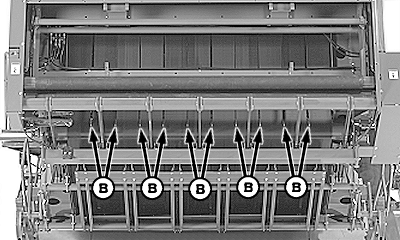

Check round module builder belt guides (A) and (B) for cotton buildup or wear.
6.
Lubricate row unit picker bars, sun gears, upper gear train and cam tracks using onboard lubrication system. (See OPERATING ONBOARD LUBE SYSTEM in the Onboard Lubrication System section for details.)
A-Upper Belt Guides
B-Lower Belt Guides
|
Upper Belt Guides
Lower Belt Guides
|
|
|
